Remkrachtversterker hydraulik for BMW 5 Series E34 540i (1992)

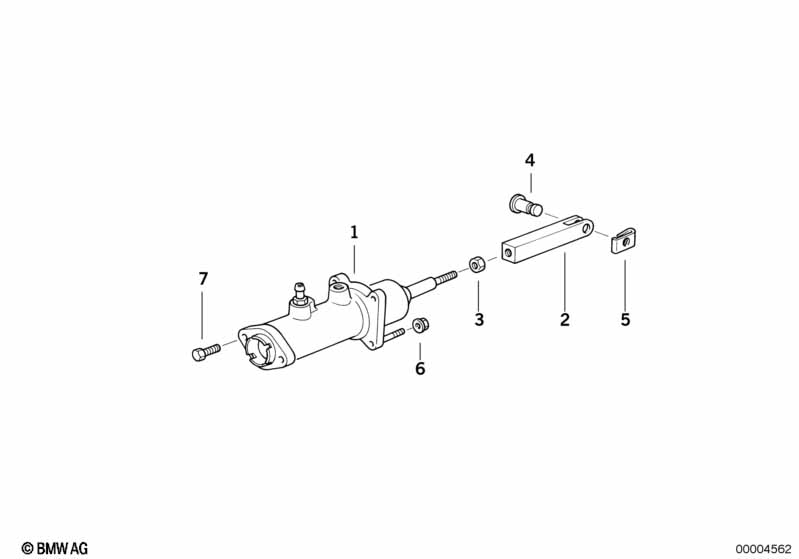

This Remkrachtversterker hydraulik technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1992.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remkrachtversterker | 1 | 34331161950 | $1277.02 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Vork | 1 | 34331106661 | $6.42 | Shop at ECS Tuning | |||||
| 03 | Zeskantige moer | M10 | 1 | 07119922851 | $0.20 | Vervallen | Shop at ECS Tuning | |||
| 04 | Pin | 1 | 35211110925 | $1.44 | Shop at ECS Tuning | |||||
| 05 | Klem | 1 | 34331120538 | $0.60 | Shop at ECS Tuning | |||||
| 06 | Zelfborgende moer | M8-8-ZNS3 | 4 | 07119904295 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Zelfborgende moer | M8-10 ZNS3 | 4 | 07119905374 | Shop at ECS Tuning | |||||
| 07 | Zeskantige Schroef | M8X25 | 3 | 34331152651 | $12.34 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Remkrachtversterker hydraulik?
- This technical diagram illustrates the Remkrachtversterker hydraulik within the Remmen group for the 5 Series E34 540i produced during 1992. It provides a detailed exploded view of the components, identifying key parts such as the Remkrachtversterker (Part #34331161950).
- Which models use the hardware listed in this Remkrachtversterker hydraulik?
- The hardware and components featured in the Remkrachtversterker hydraulik are specific to the 5 Series E34 540i produced during 1992. These technical specifications ensure that parts like the Remkrachtversterker (34331161950) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remkrachtversterker hydraulik assembly?
- Each item in the Remkrachtversterker hydraulik corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Remkrachtversterker by locating its position on the schematic, which then links to the official BMW part number 34331161950 for the Remmen section.
