Remkrachtversterker onderdruk for BMW 7 Series E66 750Li (2004)

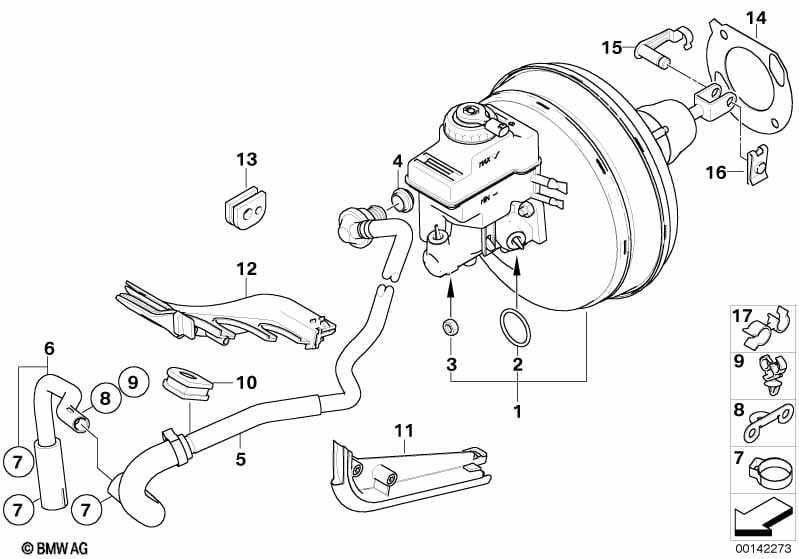

This Remkrachtversterker onderdruk technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Remkrachtversterker | 1 | 34326779736 | $588.00 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Afdichting rembekrachtiger | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| -- | Zelfborgende moer | M8-10 ZNS3 | 2 | 07119905374 | Shop at ECS Tuning | |||||
| 03 | Zelfborgende zeskantige moer | M8-8-ZNNI SI | 2 | 07129906196 | $1.60 | Shop at ECS Tuning | ||||
| 04 | Pakking | 1 | 34331161985 | $4.62 | Shop at ECS Tuning | |||||
| 05 | Drukbijping | 1 | 11667610752 | Shop at ECS Tuning | ||||||
| 07 | Slangklem | 21,3MM | 2 | 11151726339 | $1.02 | Shop at ECS Tuning | ||||
| 10 | Rubber tule | 1 | 34336751614 | $2.37 | Shop at ECS Tuning | |||||
| 11 | Scheidingswandafdichting onderst.gedeelt | 1 | 34306756578 | Vervallen | Shop at ECS Tuning | |||||
| 12 | Bovendeel afdichting scheidingswand | 1 | 34306756580 | Vervallen | Shop at ECS Tuning | |||||
| 13 | Tule | 1 | 34306753692 | Vervallen | Shop at ECS Tuning | |||||
| 14 | Afdichting rembekrachtiger | 1 | 34336753979 | $3.42 | Shop at ECS Tuning | |||||
| 15 | Veiligheidspin | D=10X29,5/PBX | 1 | 35216753830 | $2.68 | Shop at ECS Tuning | ||||
| 16 | Borg | B10-ZNS3 | 1 | 07129904567 | $0.40 | Shop at ECS Tuning | ||||
| 17 | Slanghouder | 1 | 13311713358 | $1.73 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 750Li Remkrachtversterker onderdruk?
- This technical diagram illustrates the Remkrachtversterker onderdruk within the Remmen group for the 7 Series E66 750Li produced during 2004. It provides a detailed exploded view of the components, identifying key parts such as the Remkrachtversterker (Part #34326779736).
- Which models use the hardware listed in this Remkrachtversterker onderdruk?
- The hardware and components featured in the Remkrachtversterker onderdruk are specific to the 7 Series E66 750Li produced during 2004. These technical specifications ensure that parts like the Remkrachtversterker (34326779736) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Remkrachtversterker onderdruk assembly?
- Each item in the Remkrachtversterker onderdruk corresponds to the numbered list below the illustration. For the 7 Series E66 750Li, you can identify the Remkrachtversterker by locating its position on the schematic, which then links to the official BMW part number 34326779736 for the Remmen section.
