3-spaken styling (styl.38) for BMW 5 Series E39 528i (1998)

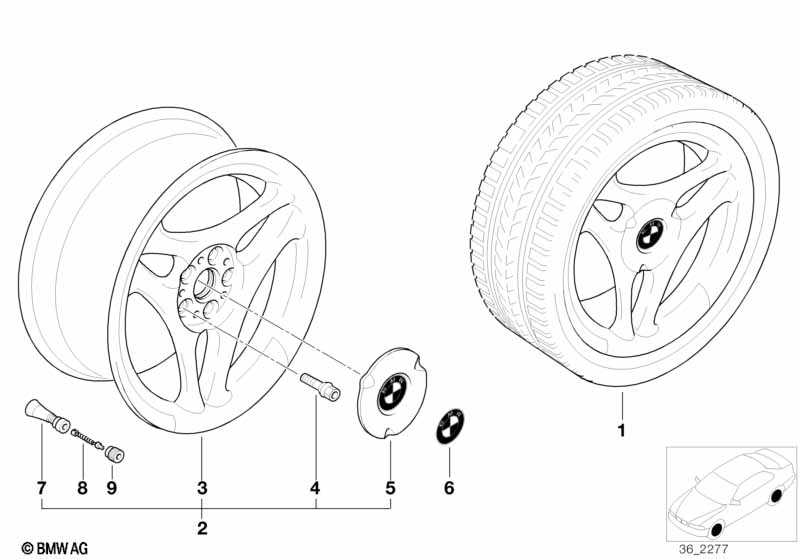

This 3-spaken styling (styl.38) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 02 | Schijfwiel v lichtmetaal "Brilliantline" | 8JX17 ET:20 | 4 | 85329409888 | $369.40 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Schijfwiel v lichtmetaal "Brilliantline" | 9JX17 ET:26 | 2 | 03/1996 | 85329409889 | $467.60 | Vervallen, +core | Shop at ECS Tuning | ||
| 03 | Schijfwiel v lichtmetaal "Brilliantline" | 8JX17 ET:20 | 4 | 36111092965 | $388.22 | Vervallen, +core | Shop at ECS Tuning | |||
| 03 | Schijfwiel v lichtmetaal "Brilliantline" | 9JX17 ET:26 | 2 | 36111092966 | $389.48 | Vervallen, +core | Shop at ECS Tuning | |||
| 04 | Wielbout zwart | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| 05 | Naafdop | 4 | 36131092971 | $34.00 | Vervallen | Shop at ECS Tuning | ||||
| 06 | BMW embleem voorzien van folie | D=64,5MM | 4 | 36136767550 | $5.33 | Shop at ECS Tuning | ||||
| 07 | Rubberventiel | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) |
S265A=Ja |
|||||||||
| 07 | Schroefventiel RDC | SCHWARZ | 4 | 36146792828 | $13.90 | Shop at ECS Tuning | ||||
| 08 | Ventiel-inzet | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Ventieldop | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| slechts passend bij Schroefventiel RDC |
||||||||||
| 09 | Ventieldop RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
