Ronde-spaken styling (styl.18) for BMW 5 Series E39 528i (1998)

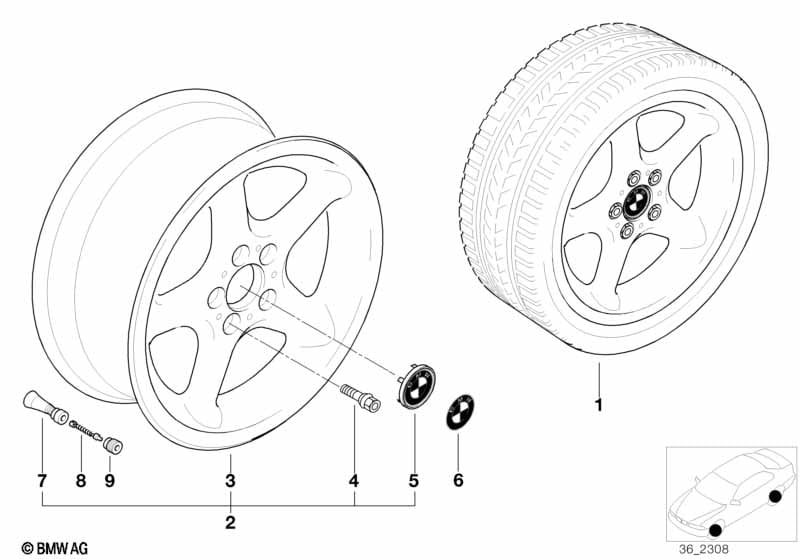

This Ronde-spaken styling (styl.18) technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Bandenspanningscontrole (RDC) |
S265A=Nee |
|||||||||
| 01 | Set compleet lichtmetaal wiel zomer | 225/60R15 96W | 1 | 85229409923 | Vervallen | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) Banden Continental |
S265A=Nee |
|||||||||
| 01 | Set compleet lichtmetaal wiel zomer | 235/45R17 94Y | 1 | 85229409925 | Vervallen | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) Banden Pirelli |
S265A=Nee |
|||||||||
| 01 | Set compleet lichtmetaal wiel zomer | 225/55R16 95W | 1 | 85229409924 | Vervallen | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) Banden Michelin |
S265A=Nee |
|||||||||
| 01 | Set compleet lichtmetaal wiel zomer | 235/45R17 94Y | 1 | 36110016161 | Vervallen, +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) VERSCHILLENDE BANDENMATEN VOORAS 235/45R17 94W ACHTERAS 255/40R17 94W Banden Dunlop |
S265A=Nee |
|||||||||
| 01 | Set compleet lichtmetaal wiel zomer | 1 | 03/1996 | 85229409967 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Velg van lichtmetaal | 7JX15 ET:20 | 4 | 85329409947 | $324.76 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Velg van lichtmetaal | 7JX16 ET:20 | 4 | 85329409948 | $350.42 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Velg van lichtmetaal | 8JX17 ET:20 | 4 | 85329409949 | $459.79 | Vervallen, +core | Shop at ECS Tuning | |||
| 02 | Velg van lichtmetaal | 9JX17 ET:26 | 2 | 03/1996 | 85329409902 | Vervallen, +core | Shop at ECS Tuning | |||
| 03 | Velg van lichtmetaal | 9JX17 ET:26 | 2 | 36111093113 | $360.95 | Vervallen, +core | Shop at ECS Tuning | |||
| 03 | Velg van lichtmetaal | 7JX15 ET:20 | 4 | 36111093525 | $262.95 | Vervallen | Shop at ECS Tuning | |||
| 03 | Velg van lichtmetaal | 7JX16 ET:20 | 4 | 36111093526 | $279.95 | +core | Shop at ECS Tuning | |||
| 03 | Velg van lichtmetaal | 8JX17 ET:20 | 4 | 36111093527 | $336.95 | Vervallen, +core | Shop at ECS Tuning | |||
| 04 | Wielbout zwart | M12X1,5 | X | 36136781150 | $3.21 | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor suedafrika |
L824A=Ja |
|||||||||
| 04 | Wielbout zwart | X | 36132902779 | Shop at ECS Tuning | ||||||
| 05 | Naafdop met chroomrand | BMW | 4 | 36136783536 | $9.95 | Shop at ECS Tuning | ||||
| 06 | BMW embleem stämplat /gelakt | 4 | 36136767547 | $5.02 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Rubberventiel | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) slechts passend bij 17" banden |
S265A=Ja |
|||||||||
| 07 | Schroefventiel RDC | SCHWARZ | 4 | 36146792828 | $13.90 | Shop at ECS Tuning | ||||
| Voor voertuigen met Bandenspanningscontrole (RDC) slechts passend bij banden 15"/16" |
S265A=Ja |
|||||||||
| 07 | Schroefventiel RDC | 4 | 36146792829 | $13.90 | Shop at ECS Tuning | |||||
| Voor voertuigen met Alleen voor suedafrika |
L824A=Ja |
|||||||||
| 07 | Rubberventiel | 4 | 36122904161 | Shop at ECS Tuning | ||||||
| 08 | Ventiel-inzet | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 09 | Ventieldop | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| slechts passend bij Schroefventiel RDC |
||||||||||
| 09 | Ventieldop RDC | 4 | 36111095436 | $0.35 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
