BMW LM-velg dubbele spaak 647M - 19'' for BMW 7 Series G12 730LdX (2018)

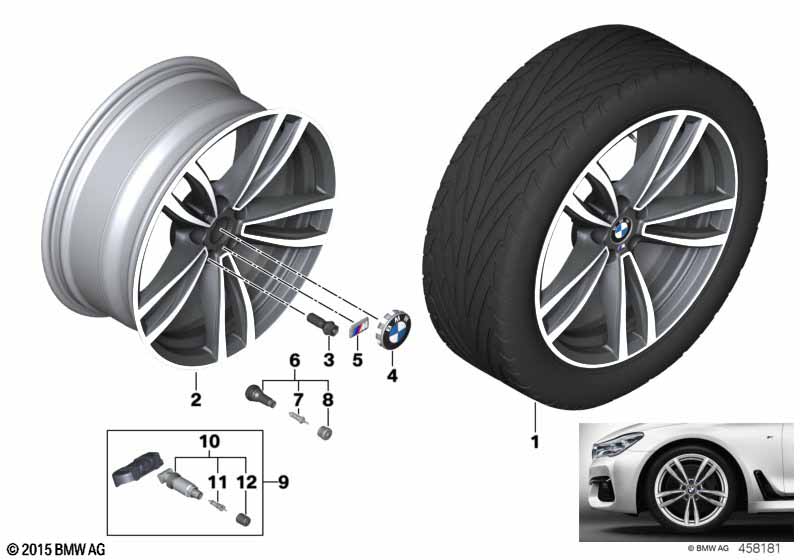

This BMW LM-velg dubbele spaak 647M - 19'' technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attentie: Vanwege de EU-accuverordening is een onderdeelbenaming voor RDC-sensoren of voor componenten met een vast gemonteerde accu wettelijk verplicht! Voor de klant moet bij de aankoop van dit product het bijbehorende document worden afgedrukt en overhandigd! Voor voertuigen met BMW LM-velg M dubbele spaak Bicolor of BMW LM-velg M dubbele spaak 647 bicolor of Standaard winter- i.p.v. zomerbanden of Winterbanden |
S21FA=Ja S21GA=Ja S931A=Ja S9WRA=Ja |
||||||||
| Voor voertuigen met BMW LM-velg M dubbele spaak 647 bicolor |
S21GA=Ja |
|||||||||
| 02 | Schijfwiel van lichtmetaal Ferricgrey | 8,5JX19 ET:25 | 4 | 36117850579 | Shop at ECS Tuning | |||||
| Voor voertuigen met BMW LM-velg M dubbele spaak Bicolor alleen voor vooras |
S21FA=Ja |
|||||||||
| 02 | Schijfwiel van lichtmetaal Ferricgrey | 8,5JX19 ET:25 | 2 | 36117850579 | Shop at ECS Tuning | |||||
| Banden van verschillend soort gepolijst |
||||||||||
| Voor voertuigen met BMW LM-velg M dubbele spaak Bicolor alleen voor achteras |
S21FA=Ja |
|||||||||
| 02 | Schijfwiel van lichtmetaal Ferricgrey | 9,5JX19 ET:39 | 2 | 36117850580 | Shop at ECS Tuning | |||||
| Banden van verschillend soort gepolijst |
||||||||||
| 03 | Wielbout zwart | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Naafdop met chroomrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| Voor voertuigen met M Sportpakket of M Sports pakket incl. Design Pure Exc. of Vervallen specifieke designvolumes |
P337A=Ja P7S0A=Ja S3DEA=Ja |
|||||||||
| 04 | Naafdop met chroomrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| Voor voertuigen met M Sportpakket en M Sports pakket incl. Design Pure Exc. en Vervallen specifieke designvolumes |
P337A=Nee P7S0A=Nee S3DEA=Nee |
|||||||||
| 04 | Naafdop met blauwe ring | BMW I | 4 | 36136852052 | Shop at ECS Tuning | |||||
| 05 | M embleem | 4 | 36112228660 | $6.62 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Nee |
|||||||||
| 06 | Rubberventiel | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| 07 | Ventiel-inzet | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| 08 | Ventieldop | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Ja |
|||||||||
| 09 | Wielelek.moduul RDCi met schroefventiel | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave en Radiofrequentie 315 MHz |
S2VBA=Ja S876A=Ja |
|||||||||
| 09 | Wielelek.moduul RDCi met schroefventiel | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Ja |
|||||||||
| 10 | Reparatieset schroefventiel RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
| 11 | Binnenventiel RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| 12 | Ventieldopje RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
