BMW lichtmetalen wiel V-spaak 687 - 21" for BMW 7 Series G12 730LdX (2018)

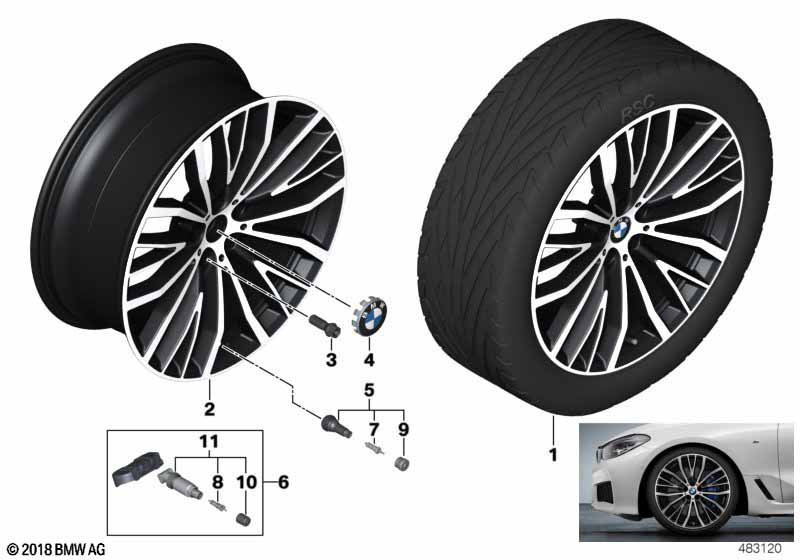

This BMW lichtmetalen wiel V-spaak 687 - 21" technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Attentie: Vanwege de EU-accuverordening is een onderdeelbenaming voor RDC-sensoren of voor componenten met een vast gemonteerde accu wettelijk verplicht! Voor de klant moet bij de aankoop van dit product het bijbehorende document worden afgedrukt en overhandigd! In de EU-lidstaten en in Zwitserland moet de samenvatting van de EU- typegoedkeuring (te vinden bij de wiel-/ bandcombinaties op de EF-homepage resp. op de KSD-dvd, in Duitsland ook op Infonet onder BMW > Aftersales > Zubehör > Gutachten) aan de klant worden overhandigd. Deze moet in de auto worden bewaard. Afhankelijk van het land is naderhand eventueel een wijziging van de voertuigpapieren noodzakelijk. Voor voertuigen met 21'' lichtmetalen wiel V-spaak 687 en Alleen voor China |
SZUJA=Ja L8AAA=Nee |
||||||||
| 02 | Schijfwiel van lichtm. glanzend gedr. | 8,5JX21 ET:25 | 2 | 36116877018 | Shop at ECS Tuning | |||||
| 02 | Schijfwiel van lichtm. glanzend gedr. | 10JX21 ET:41 | 2 | 36116877019 | Shop at ECS Tuning | |||||
| 03 | Wielbout zwart | M14X1,25 | 20 | 36136890324 | Shop at ECS Tuning | |||||
| 04 | Naafdop met chroomrand | BMW | 4 | 36136850834 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Nee |
|||||||||
| 05 | Rubberventiel | L=42,5MM | 4 | 36121116326 | $3.30 | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor japan en Bandenspanningsweergave |
L807A=Ja S2VBA=Ja |
|||||||||
| 06 | Wielelek.moduul RDCi met schroefventiel | 315MHZ | 4 | 36106887146 | Shop at ECS Tuning | |||||
| Voor voertuigen met Alleen voor japan en Bandenspanningsweergave |
L807A=Nee S2VBA=Ja |
|||||||||
| 06 | Wielelek.moduul RDCi met schroefventiel | 433MHZ | 4 | 36106887147 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Nee |
|||||||||
| 07 | Ventiel-inzet | 4 | 36141095389 | $1.38 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Ja |
|||||||||
| 08 | Binnenventiel RDCi | 4 | 36146872777 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Nee |
|||||||||
| 09 | Ventieldop | 4 | 36121120779 | $0.60 | Shop at ECS Tuning | |||||
| Voor voertuigen met Bandenspanningsweergave |
S2VBA=Ja |
|||||||||
| 10 | Ventieldopje RDCi | 4 | 36146872776 | Shop at ECS Tuning | ||||||
| 11 | Reparatieset schroefventiel RDCi | 4 | 36106874842 | Shop at ECS Tuning | ||||||
