Voorbouw bevestiging rechts for BMW 5 Series E39 528i (1995)

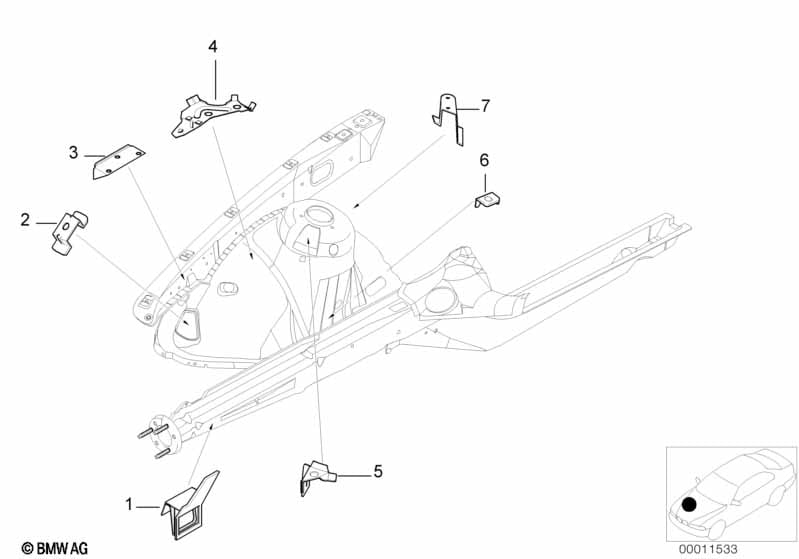

This Voorbouw bevestiging rechts technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Houder v radiateurbevestiging rechts | 1 | 41118125050 | $8.22 | Shop at ECS Tuning | |||||
| 02 | Insteekbeugel luchtfilter | 1 | 41148167199 | $5.73 | Shop at ECS Tuning | |||||
| 03 | Bevestiging accelerasensor | 1 | 41148116394 | $7.47 | Shop at ECS Tuning | |||||
| 04 | Bevestiging v droogfles ABS/AGD | 1 | 09/1998 | 41148168897 | $5.98 | Shop at ECS Tuning | ||||
| 05 | Bevestiging ABS-diagnosestekker | 1 | 41148172149 | $1.82 | Shop at ECS Tuning | |||||
| 06 | Bevestiging remleidings rechts | 1 | 41148187668 | $1.50 | Shop at ECS Tuning |
