Achterportier - scharnier/portiervanger for BMW 5 Series E39 530i (2001)

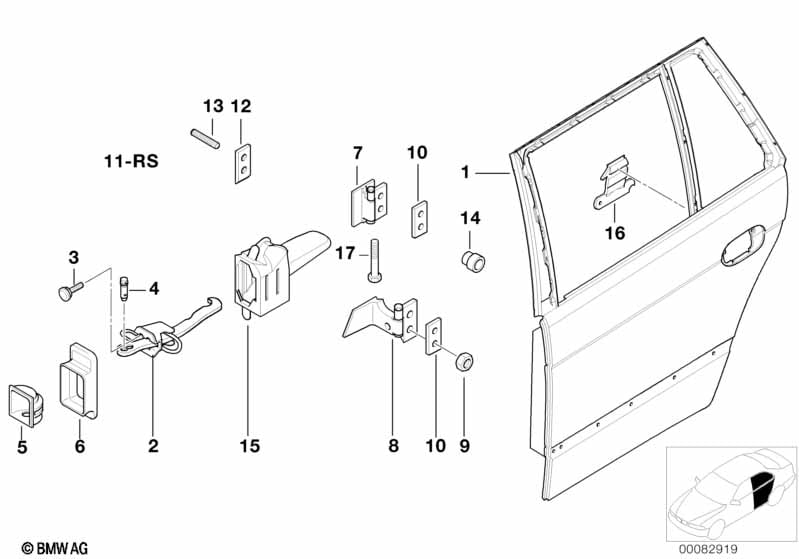

This Achterportier - scharnier/portiervanger technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| VOOR VAARTUIGE MET EN ZONDER DUBBELE RUITEN (ISOLATIE) |
||||||||||
| 01 | Deur achter links | 1 | 41528266725 | $769.17 | Vervallen | Shop at ECS Tuning | ||||
| 01 | Deur achter rechts | 1 | 41528266726 | $769.17 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Deurrem achter | 2 | 51228193448 | $37.70 | Shop at ECS Tuning | |||||
| 03 | Torx-bout | ISA M6X12 | 4 | 51211973382 | $0.66 | Shop at ECS Tuning | ||||
| 04 | Pin | 2 | 51218141116 | $1.10 | Shop at ECS Tuning | |||||
| 05 | Afdekking | 2 | 51218171502 | $2.06 | Shop at ECS Tuning | |||||
| 06 | Pakking deurrem | 2 | 51218203824 | $10.39 | Shop at ECS Tuning | |||||
| 07 | Deurscharnier boven achter links | 1 | 41528185781 | $35.79 | Shop at ECS Tuning | |||||
| 07 | Deurscharnier boven achter rechts | 1 | 41528185782 | $35.79 | Shop at ECS Tuning | |||||
| 08 | Deurscharnier boven onder links | 1 | 41528207937 | $35.79 | Vervallen | Shop at ECS Tuning | ||||
| 08 | Deurscharnier boven onder rechts | 1 | 41528207938 | $35.79 | Vervallen | Shop at ECS Tuning | ||||
| 09 | Zeskantige moer | M8-8-ZNNIV SI | 8 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 10 | Afstandsring | 1,0MM | X | 41517202047 | $3.02 | Shop at ECS Tuning | ||||
| 10 | Afstandsring | 0,5MM | X | 41518173321 | $3.02 | Shop at ECS Tuning | ||||
| 11 | Reparatie set vir deurscharnier | X | 41511960998 | $9.84 | Shop at ECS Tuning | |||||
| BETAANDE UIT PIN BUS RING BORGRING ZESKANTIGE SCHROEF MET SCHIJF |
||||||||||
| 12 | Gekartelde plaat | M8 | 4 | 41511925445 | $47.65 | Shop at ECS Tuning | ||||
| 13 | Stiftschroef | M8X25 | 8 | 41511925444 | $8.16 | Shop at ECS Tuning | ||||
| 14 | Afsluitkapje | SCHWARZ | 2 | 51218177670 | $0.33 | Shop at ECS Tuning | ||||
| 15 | Afdekking deurrem links | 1 | 51228163985 | $4.86 | Shop at ECS Tuning | |||||
| 15 | Afdekking deurrem rechts | 1 | 51228163986 | $4.86 | Shop at ECS Tuning | |||||
| 16 | Afdekking links | 1 | 05/1999 | 51218243391 | $4.18 | Shop at ECS Tuning | ||||
| 16 | Afdekking rechts | 1 | 05/1999 | 51218243392 | $4.18 | Shop at ECS Tuning | ||||
| 17 | Zeskantige Schroef | M6X22-8.8-MK | 4 | 07119906263 | $0.36 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
