Kofferdeksel/achterruit for BMW 5 Series E39 530i (2001)

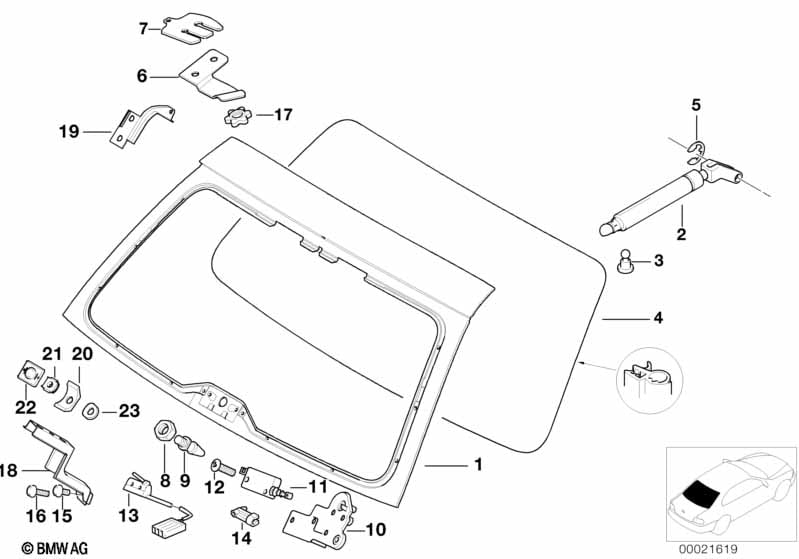

This Kofferdeksel/achterruit technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Achterruitraam | 1 | 03/1998 | 41628220962 | $420.52 | Shop at ECS Tuning | ||||
| 02 | Gasdrukveer | 560N | 2 | 51248190688 | $41.57 | Shop at ECS Tuning | ||||
| 03 | Kogelschroef | M16X1.5 | 2 | 41328194670 | $6.48 | Shop at ECS Tuning | ||||
| 04 | Dichting voor hekruit | 1 | 51718190689 | $78.94 | Shop at ECS Tuning | |||||
| 05 | Borgring | 6,0 | 2 | 07119901421 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Bijping bevestiging links | 1 | 51318371307 | $5.60 | Shop at ECS Tuning | |||||
| 06 | Bijping bevestiging rechts | 1 | 51318371308 | $3.02 | Shop at ECS Tuning | |||||
| 07 | Afstandsring | 1.0MM | X | 51248219000 | $1.85 | Shop at ECS Tuning | ||||
| 08 | Zeskantige moer | M10X1 FLACH | 1 | 03/1998 | 07119901301 | $0.33 | Shop at ECS Tuning | |||
| 09 | Slotbeugel | M10X1 | 1 | 12/1998 | 51248238470 | $20.27 | Shop at ECS Tuning | |||
| 10 | Slot van achterruit | 1 | 12/1998 | 51248238469 | $113.82 | +core | Shop at ECS Tuning | |||
| 11 | Stelaandrijving v achterruit | 1 | 12/1998 | 67118384069 | $86.30 | Shop at ECS Tuning | ||||
| 12 | Schroef thermoplast. kunststof | M5X12 | 3 | 07129904293 | $1.05 | Shop at ECS Tuning | ||||
| 14 | Verbindingsstuk | 1 | 51248172157 | $4.60 | Shop at ECS Tuning | |||||
| 15 | Torx-bout met plaat | M6X12 | 2 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Torx-bout met plaat | M6X12 | 1 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 17 | Stervormig moer | ASA M8 | 4 | 07147203401 | Shop at ECS Tuning | |||||
| 18 | Bevestiging beneden | 1 | 51248212052 | $12.20 | Shop at ECS Tuning | |||||
| 19 | Bevestiging boven | 1 | 51248149380 | $17.62 | Shop at ECS Tuning | |||||
| 20 | Beugel | 1 | 03/1998 | 51248238804 | Shop at ECS Tuning | |||||
| 21 | Moer | M10X1 | 1 | 03/1998 | 51248238803 | $8.24 | Vervallen | Shop at ECS Tuning | ||
| 22 | Afdekking | 1 | 03/1998 | 51248239123 | $1.33 | Shop at ECS Tuning |
Notities
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
- Vervallen = het onderdeel is niet meer leverbaar.
