Kofferdeksel/slotsysteem for BMW 5 Series E39 530i (2001)

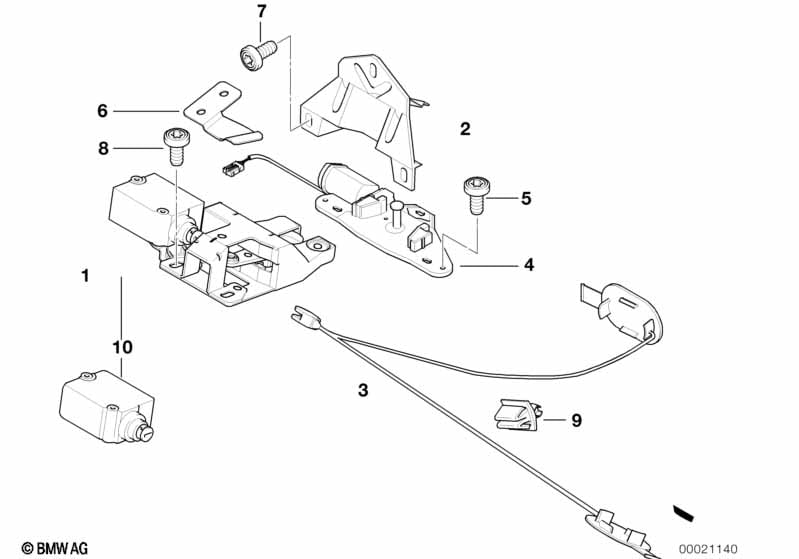

This Kofferdeksel/slotsysteem technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slot achterklep | 1 | 51248168892 | $95.92 | Shop at ECS Tuning | |||||
| 02 | Bevestiging kofferdekselslot | 1 | 51248200700 | Shop at ECS Tuning | ||||||
| 03 | Trekband v noodbediening | 1 | 51248232520 | $2.82 | Shop at ECS Tuning | |||||
| 04 | Aandrijving servo slot kofferdeksel | 1 | 67108362371 | Shop at ECS Tuning | ||||||
| 05 | Torx-bout met plaat | ISA M6X21 | 3 | 51248182364 | $1.27 | Shop at ECS Tuning | ||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Geluidsisolatie voorruit | 1418X15MM | 6 | 51487941312 | NoS | Shop at ECS Tuning | ||||
| 06 | Kabelbevestiging | D=12,8MM | 2 | 61131267476 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Torx-bout met plaat | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Torx-bout met plaat | M6X12 | 3 | 07146985055 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Klem | 1 | 51228202809 | $0.50 | Shop at ECS Tuning | |||||
| 10 | Stelaandrijving v kofferdeksel | 1 | 67118368196 | $86.30 | Shop at ECS Tuning | |||||
Notities
- NoS = No Stock (Deel centraal niet voor voorraad)
