Zijraamwerk for BMW 5 Series E34 540i (1995)

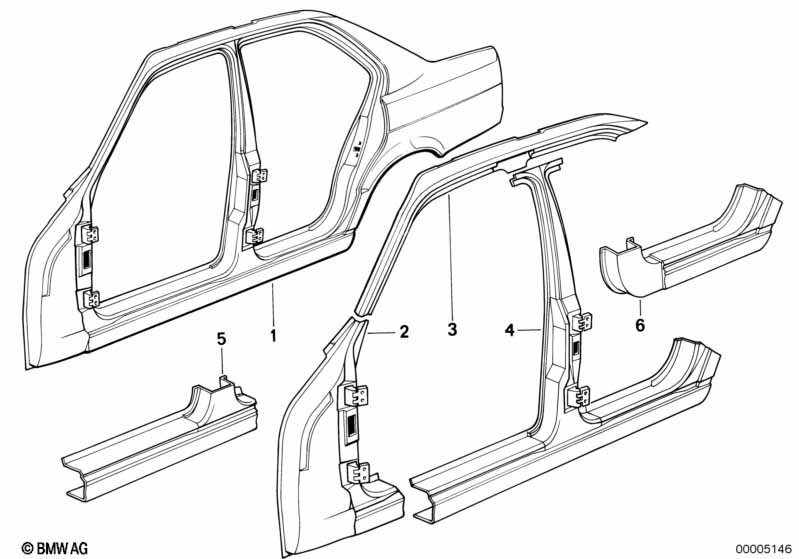

This Zijraamwerk technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1995.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zijraamwerk links | 1 | 41008110941 | $1113.77 | Vervallen | Shop at ECS Tuning | ||||
| 01 | Zijraamwerk rechts | 1 | 41008110942 | $1113.77 | Vervallen | Shop at ECS Tuning | ||||
| 02 | A-kolom buiten links | 1 | 41001946313 | $544.60 | Vervallen | Shop at ECS Tuning | ||||
| 02 | A-kolom buiten rechts | 1 | 41001946314 | $544.60 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Dakframe links | 1 | 41001946317 | $502.70 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Dakframe rechts | 1 | 41001946318 | $502.70 | Vervallen | Shop at ECS Tuning | ||||
| 04 | B-kolom met instap links | 1 | 41001946315 | $552.81 | Vervallen | Shop at ECS Tuning | ||||
| 04 | B-kolom met instap rechts | 1 | 41001946316 | $552.81 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Snede instap voor links | 1 | 41001946319 | $154.62 | Shop at ECS Tuning | |||||
| 05 | Snede instap voor rechts | 1 | 41001946320 | $154.62 | Shop at ECS Tuning | |||||
| 06 | Snede instap achter links | 1 | 41008181707 | $226.67 | Shop at ECS Tuning | |||||
| 06 | Snede instap achter rechts | 1 | 41008181708 | $226.67 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
