Zijpaneel/hekbekleidung for BMW 7 Series E23 733i (1979)

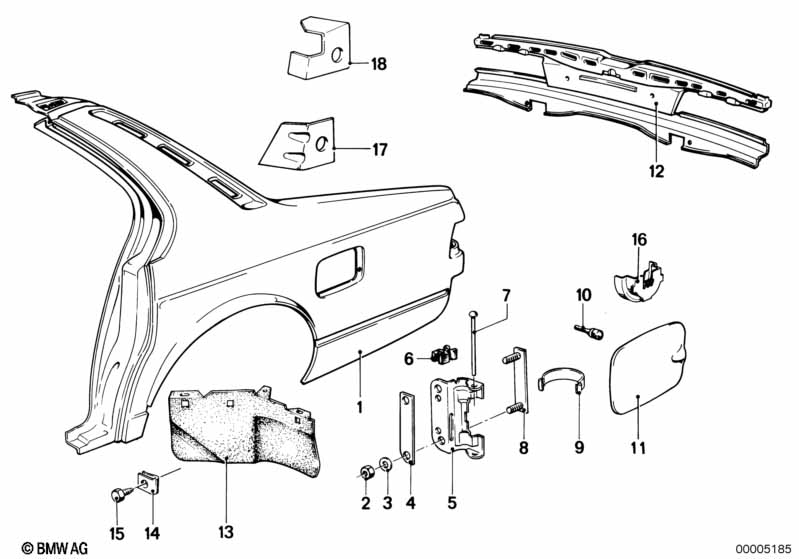

This Zijpaneel/hekbekleidung technical drawing provides a detailed breakdown of the assembly for the 7 Series E23 733i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zijpaneel achter links | 1 | 41351961845 | $792.79 | Shop at ECS Tuning | |||||
| 01 | Zijpaneel achter rechts | 1 | 41351961846 | $792.79 | Shop at ECS Tuning | |||||
| 02 | Zeskantige moer | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 03 | Onderzetterplaat | A6,4-200HV-ZNS3 | 2 | 07119903791 | $0.11 | Shop at ECS Tuning | ||||
| 04 | Compensatieplaat | 0,5MM | X | 51171852594 | $0.17 | Vervallen | Shop at ECS Tuning | |||
| 04 | Compensatieplaat | 1,0MM | X | 51171852595 | $0.17 | Shop at ECS Tuning | ||||
| 05 | Scharnier | 1 | 51171846701 | $11.15 | Vervallen | Shop at ECS Tuning | ||||
| 06 | Aanslag | 1 | 51171836476 | $0.18 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Scharnierpin | 1 | 51171829639 | $2.30 | Shop at ECS Tuning | |||||
| 08 | Gekartelde plaat | 1 | 51211832811 | $6.31 | Shop at ECS Tuning | |||||
| 09 | Veer | 1 | 51171969235 | $1.38 | Shop at ECS Tuning | |||||
| 10 | Aanslagrubber | 1 | 51171853772 | $1.52 | Shop at ECS Tuning | |||||
| 11 | Vulklepp | 1 | 51171867746 | $35.15 | Vervallen | Shop at ECS Tuning | ||||
| 12 | Karrosseriesluitplaat | 1 | 41341852343 | $269.02 | Shop at ECS Tuning | |||||
| 13 | Spatbescherming achter links | 1 | 51711886707 | $19.65 | Vervallen | Shop at ECS Tuning | ||||
| 13 | Spatbescherming achter rechts | 1 | 51711886708 | $22.45 | Vervallen | Shop at ECS Tuning | ||||
| 14 | Moer | ST 4,8-4-ZNS3 | 6 | 07129904224 | $0.11 | Shop at ECS Tuning | ||||
| 15 | Zeskantschroef voor blik | ST4,8X13-ZN3 | 6 | 07119904285 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Befestiging tankafsluitdop | 1 | 51171923919 | $5.74 | Shop at ECS Tuning | |||||
| 17 | Bevestiging under links | 1 | 41351865197 | Vervallen | Shop at ECS Tuning | |||||
| 17 | Bevestiging under rechts | X | 41351865198 | Vervallen | Shop at ECS Tuning | |||||
| 18 | Bevestiging boven links | 1 | 41351864875 | Vervallen | Shop at ECS Tuning | |||||
| 18 | Bevestiging boven rechts | 1 | 41351864876 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
