Deur uitvoering/deur slot voor for BMW 1502-2002tii 1602 (1971)

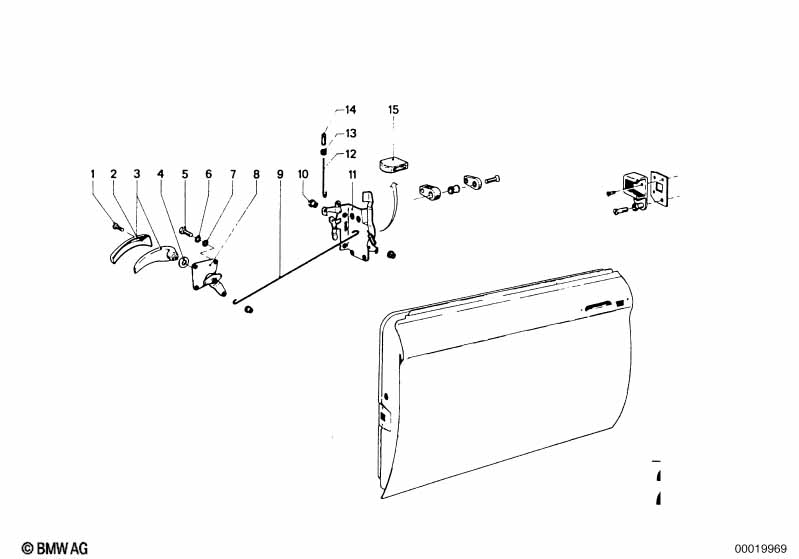

This Deur uitvoering/deur slot voor technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 1602. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1971.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Late uitvoering | |||||||||
| 01 | Kegelschroef | 2 | 51211800790 | $0.67 | Shop at ECS Tuning | |||||
| 02 | Afdekking links | 1 | 51211803751 | $4.61 | Shop at ECS Tuning | |||||
| 02 | Afdekking rechts | 1 | 51211803752 | $4.61 | Shop at ECS Tuning | |||||
| 03 | Handgreep links | 1 | 51211806003 | $38.11 | Shop at ECS Tuning | |||||
| 03 | Handgreep rechts | 1 | 51211806004 | $38.11 | Shop at ECS Tuning | |||||
| 04 | Afdekking | 2 | 51211800789 | $0.55 | Shop at ECS Tuning | |||||
| 05 | Zeskantige Schroef | M5X10 | 4 | 07119913218 | $0.12 | Shop at ECS Tuning | ||||
| 06 | Tandveerring | A5,1 | 4 | 07119936107 | $0.18 | Shop at ECS Tuning | ||||
| 07 | Onderzetterplaat | 5.3-140 HV-ZNS | 4 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Afstandsbediening links | 1 | 51211800751 | Vervallen | Shop at ECS Tuning | |||||
| 08 | Afstandsbediening rechts | 1 | 51211800752 | Vervallen | Shop at ECS Tuning | |||||
| 09 | Verbindingsstang | 2 | 51216442165 | Vervallen | Shop at ECS Tuning | |||||
| 10 | Tule | 6 | 52208238999 | $0.40 | Shop at ECS Tuning | |||||
| 11 | Draaisluiting voor links | 1 | 51211823847 | $395.43 | Vervallen | Shop at ECS Tuning | ||||
| 11 | Draaisluiting voor rechts | 1 | 51211823848 | $395.43 | Vervallen | Shop at ECS Tuning | ||||
| 12 | Bedieningsstang | 1 | 51216442150 | Vervallen | Shop at ECS Tuning | |||||
| 12 | Bedieningsstang | 1 | 51216442151 | Vervallen | Shop at ECS Tuning | |||||
| 13 | Tule | 2 | 51416440264 | Vervallen | Shop at ECS Tuning | |||||
| 14 | Vergrendelingsknop | SCHWARZ | 2 | 51211805643 | $1.26 | Shop at ECS Tuning | ||||
| 15 | Schijf | 2 | 51211809735 | $1.36 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
