Raamwerk zijkant-langsligger/stijlen for BMW 2500-3.3Li 3.3Li

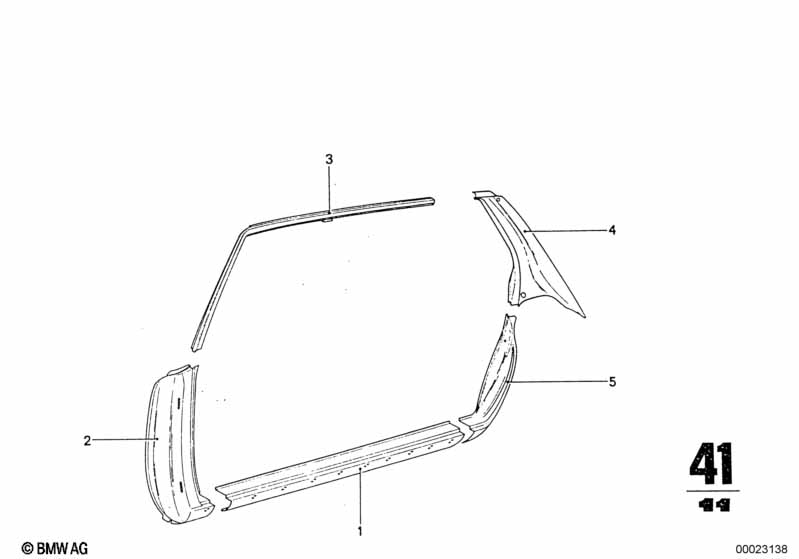

This Raamwerk zijkant-langsligger/stijlen technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Instap openingblik links | REPARATURBLECH | 1 | 41351885159 | $44.64 | Vervallen | Shop at ECS Tuning | |||
| 01 | Instap openingblik rechts | REPARATURBLECH | 1 | 41351885160 | $44.64 | Vervallen | Shop at ECS Tuning | |||
| 01 | Afdekplaat | 1 | 01/1974 | 02/1977 | 41001827033 | Vervallen | Shop at ECS Tuning | |||
| 01 | Afdekplaat | 1 | 01/1974 | 02/1977 | 41001827034 | Vervallen | Shop at ECS Tuning | |||
| 02 | Stijl voor links | 1 | 41001807133 | $138.38 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Stijl voor rechts | 1 | 41001807134 | Vervallen | Shop at ECS Tuning | |||||
| 03 | Dakframe links | 1 | 01/1974 | 02/1977 | 41001827031 | Vervallen | Shop at ECS Tuning | |||
| 03 | Dakframe rechts | 1 | 01/1974 | 02/1977 | 41001827032 | Vervallen | Shop at ECS Tuning | |||
| 04 | Stijl achter links | 1 | 05/1971 | 02/1977 | 41001813173 | Vervallen | Shop at ECS Tuning | |||
| 04 | Stijl achter rechts | 1 | 05/1971 | 02/1977 | 41001813174 | Vervallen | Shop at ECS Tuning | |||
| 05 | Stijl achter links | 1 | 41001807139 | Vervallen | Shop at ECS Tuning | |||||
| 05 | Stijl achter rechts | 1 | 41001807140 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
