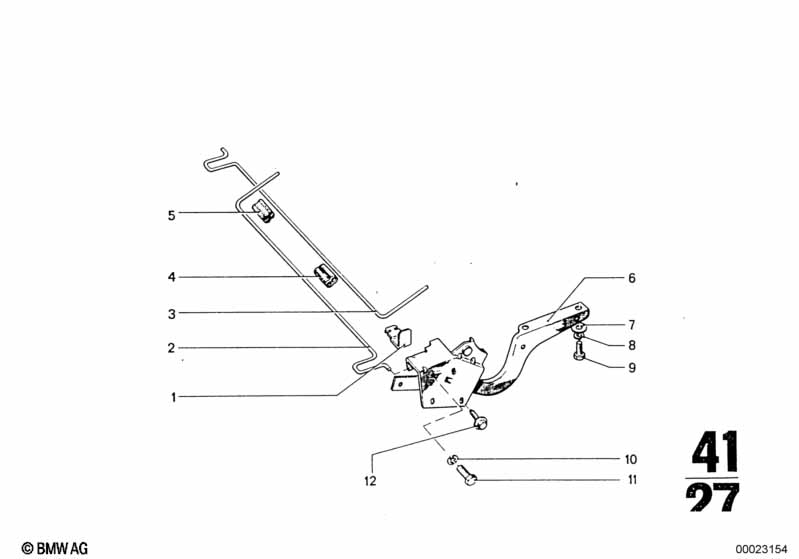

Onderdelen voor kofferdeksel for BMW 2500-3.3Li 3.3Li
This Onderdelen voor kofferdeksel technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Klemgleuf | 2 | 41621801569 | Vervallen | Shop at ECS Tuning | |||||
| 02 | Torsiever links | 1 | 04/1969 | 02/1977 | 41621804077 | $13.80 | Vervallen | Shop at ECS Tuning | ||
| 03 | Torsieveer rechts | 1 | 04/1969 | 02/1977 | 41621804078 | $13.80 | Vervallen | Shop at ECS Tuning | ||
| 04 | Lagering | 1 | 08/1968 | 02/1977 | 51241815364 | $0.90 | Shop at ECS Tuning | |||
| 05 | Lagering | 2 | 51241804080 | $1.92 | Shop at ECS Tuning | |||||
| 06 | Scharnier | 1 | 41621813529 | $29.59 | Shop at ECS Tuning | |||||
| 06 | Scharnier | 1 | 41621813530 | $29.59 | Shop at ECS Tuning | |||||
| 07 | Onderzetterplaat | 8,4X24X2-ZNS3 | 4 | 07119904164 | $0.40 | Shop at ECS Tuning | ||||
| 08 | Veerring | B8 | 4 | 07119933096 | $0.18 | Shop at ECS Tuning | ||||
| 09 | Zeskantige Schroef | M8X20-ZNNIV SI | 4 | 07119903039 | Shop at ECS Tuning | |||||
| 10 | Veerring | B8 | 6 | 07119932093 | $0.38 | Shop at ECS Tuning | ||||
| 12 | Blikschroef | B6,5X16 | 6 | 12138530118 | $0.40 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
