Zijraamwerk for BMW 5 Series G30 LCI 520dX (2022)

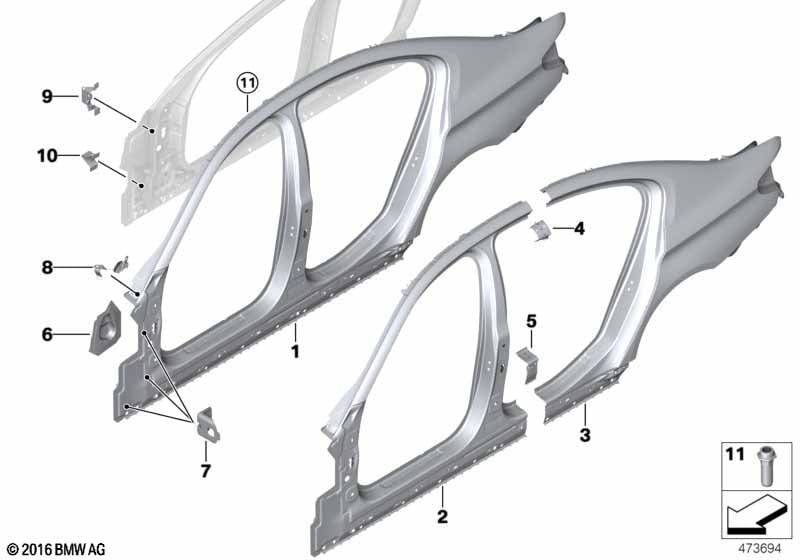

This Zijraamwerk technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 LCI 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2022.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zijraamwerk links | 1 | 41007437437 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| 01 | Zijraamwerk rechts | 1 | 41007437438 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Positioneringshulp T-bout | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Blinde klinkmoer met kraag | M7 | 2 | 07147363429 | Shop at ECS Tuning | |||||
| -- | T-lasbout | L=5,4MM | 20 | 41318412638 | Shop at ECS Tuning | |||||
| 02 | A-kolom buiten links | 1 | 41007437593 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| 02 | A-kolom buiten rechts | 1 | 41007437594 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Positioneringshulp T-bout | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | T-lasbout | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| Wordt met reparatietechniek lijmen/poppen uitgevoerd. |
||||||||||
| 03 | Zijpaneel achter links | 1 | 41007437519 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Blindklinknagel N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Schroef | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Holle ruimtebescherming-wasverwijderaar | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Carrosserielijm K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Reinigingsmiddel R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Stansklinknagel N4 | 39 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioneringshulp T-bout | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Afdichtingsmateriaal D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Carrosserielijm K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Kunststof moet met ring | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Kunststofmoer bout grove schroefdraad | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Verstevigingsplaat C-stijl links | 1 | 41007437599 | Shop at ECS Tuning | ||||||
| -- | Verstevigingsplaat dorpel links | 1 | 41007437605 | Shop at ECS Tuning | ||||||
| -- | T-lasbout | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 03 | Zijpaneel achter rechts | 1 | 41007437520 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Blindklinknagel N3 | 15 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Schroef | SF PLUS M5X15 | 3 | 83190301639 | $0.31 | Shop at ECS Tuning | ||||
| -- | Holle ruimtebescherming-wasverwijderaar | 500ML | 1 | 83120390086 | Shop at ECS Tuning | |||||
| -- | Carrosserielijm K5 | 50 ML | 1 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Reinigingsmiddel R1 | 100ML | 1 | 83192211217 | Shop at ECS Tuning | |||||
| -- | Stansklinknagel N4 | 39 | 83192457307 | Shop at ECS Tuning | ||||||
| -- | Positioneringshulp T-bout | 1 | 41212460156 | Shop at ECS Tuning | ||||||
| -- | Afdichtingsmateriaal D2 | 290ML | 1 | 83425A547B9 | Shop at ECS Tuning | |||||
| -- | Carrosserielijm K5 | 195 ML | 1 | 83195A59935 | Shop at ECS Tuning | |||||
| -- | Kunststof moet met ring | D=22MM | 6 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| -- | Kunststofmoer bout grove schroefdraad | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| -- | Verstevigingsplaat C-stijl rechts | 1 | 41007437600 | Shop at ECS Tuning | ||||||
| -- | Verstevigingsplaat dorpel rechts | 1 | 41007437606 | Shop at ECS Tuning | ||||||
| -- | T-lasbout | L=5,4MM | 10 | 41318412638 | Shop at ECS Tuning | |||||
| 04 | Verstevigingsplaat C-stijl links | 1 | 41007437599 | Shop at ECS Tuning | ||||||
| 04 | Verstevigingsplaat C-stijl rechts | 1 | 41007437600 | Shop at ECS Tuning | ||||||
| 05 | Verstevigingsplaat dorpel links | 1 | 41007437605 | Shop at ECS Tuning | ||||||
| 05 | Verstevigingsplaat dorpel rechts | 1 | 41007437606 | Shop at ECS Tuning | ||||||
| 06 | Afdekking A-kolom links | 1 | 41007437513 | Shop at ECS Tuning | ||||||
| 07 | Bevestiging zijpaneel A-kolom | 6 | 41009624949 | Shop at ECS Tuning | ||||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Blindklinknagel N3 | 12 | 83190301421 | $0.31 | Shop at ECS Tuning | |||||
| -- | Carrosserielijm K5 | 50 ML | 6 | 83192158654 | Shop at ECS Tuning | |||||
| -- | Reinigingsmiddel R1 | 100ML | 6 | 83192211217 | Shop at ECS Tuning | |||||
| 08 | Bevestiging zijpaneel boven links | 1 | 41007437507 | Shop at ECS Tuning | ||||||
| 08 | Bevestiging zijpaneel boven rechts | 1 | 41007437508 | Shop at ECS Tuning | ||||||
| 09 | Bevestig.ruitenspr.water reservoir boven | 1 | 41007437511 | Shop at ECS Tuning | ||||||
| 10 | Houder sproeiervloeistofreservoir onder | 1 | 41007437512 | Shop at ECS Tuning | ||||||
| Bevestiging voor Dakdragersysteem |
||||||||||
| 11 | Blinde klinkmoer met kraag | M7 | 4 | 07147363429 | Shop at ECS Tuning | |||||
