Bumper voor for BMW 3 Series E30 320i (1986)

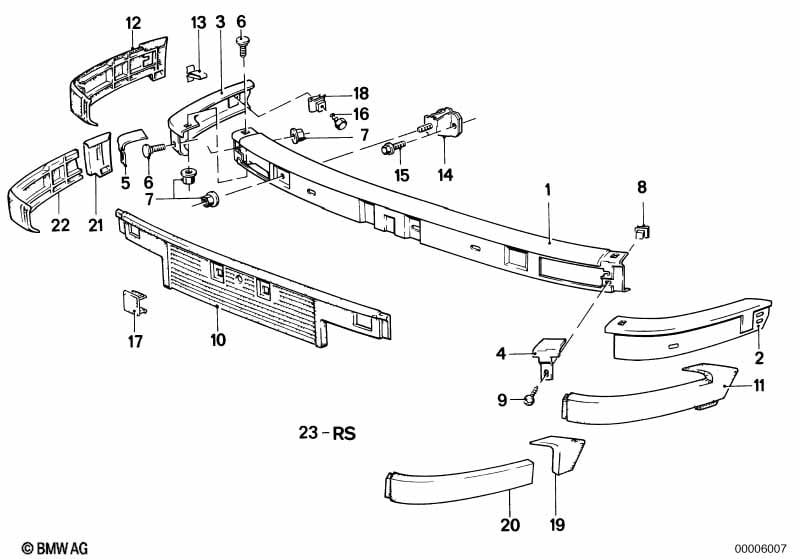

This Bumper voor technical drawing provides a detailed breakdown of the assembly for the 3 Series E30 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1986.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper voor midden | 1 | 10/1990 | 51111888265 | $426.41 | Shop at ECS Tuning | ||||
| 01 | Bumper gegrond voor midden | 1 | 10/1990 | 51111959911 | $185.00 | Vervallen | Shop at ECS Tuning | |||
| 02 | Bumper voor links | 1 | 10/1990 | 51111888391 | $215.02 | Shop at ECS Tuning | ||||
| 02 | Bumper gegrond voor links | 1 | 10/1990 | 51111959907 | $128.02 | Shop at ECS Tuning | ||||
| 03 | Bumper voor rechts | 1 | 10/1990 | 51111888392 | $215.02 | Shop at ECS Tuning | ||||
| 03 | Bumper gegrond voor rechts | 1 | 10/1990 | 51111959908 | $128.02 | Shop at ECS Tuning | ||||
| 04 | Scherm links | 1 | 10/1990 | 51111888269 | $32.62 | Shop at ECS Tuning | ||||
| 04 | Sierafdekking gegrond links | 1 | 10/1990 | 51111959887 | $14.89 | Shop at ECS Tuning | ||||
| 05 | Scherm rechts | 1 | 10/1990 | 51111888270 | $32.62 | Shop at ECS Tuning | ||||
| 05 | Sierafdekking gegrond rechts | 1 | 10/1990 | 51111959888 | $14.89 | Shop at ECS Tuning | ||||
| 06 | Schroef | 4 | 10/1990 | 51121843029 | $0.65 | Shop at ECS Tuning | ||||
| 07 | Zeskantige moer met plaat | M8 | 6 | 10/1990 | 51117070183 | $0.77 | Shop at ECS Tuning | |||
| 08 | Moer | ST4,8-13-ZNS3 | 2 | 10/1990 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 09 | Verz.bolkopschroef | ST4,8X13-Z2 | 2 | 10/1990 | 07119907957 | $0.18 | Shop at ECS Tuning | |||
| 10 | Bumperlijst | 1 | 10/1990 | 51111888266 | $28.62 | Shop at ECS Tuning | ||||
| 10 | Bumperlijst | M TECHNIC | 1 | 10/1990 | 51111953715 | $48.51 | Vervallen | Shop at ECS Tuning | ||
| 11 | Stotlijst links | 1 | 10/1990 | 51111888273 | $32.08 | Shop at ECS Tuning | ||||
| 11 | Stotlijst links | M TECHNIC | 1 | 10/1990 | 51111953713 | $41.42 | Vervallen | Shop at ECS Tuning | ||
| 12 | Stotlijst rechts | 1 | 10/1990 | 51111888274 | $32.08 | Shop at ECS Tuning | ||||
| 12 | Stotlijst rechts | M TECHNIC | 1 | 10/1990 | 51111953714 | $41.42 | Vervallen | Shop at ECS Tuning | ||
| 13 | Parkerklem | 8 | 10/1990 | 51111838076 | $1.98 | Shop at ECS Tuning | ||||
| 14 | Bevestiging | 2 | 10/1990 | 51111888122 | $13.18 | Shop at ECS Tuning | ||||
| 15 | Zeskantige Schroef | M8X16-8.8-ZNS3 | 4 | 10/1990 | 07119902900 | $0.36 | Shop at ECS Tuning | |||
| 15 | Zeskantige Schroef | M6X16-8.8-ZNS3 | 4 | 10/1990 | 07119904357 | $0.36 | Shop at ECS Tuning | |||
| 16 | Zeskantschroef voor blik | ST6,3X22-C-Z2 | 2 | 10/1990 | 07119916971 | $0.30 | Shop at ECS Tuning | |||
| 16 | Zeskantschroef voor blik met schijf | ST-6,3X22 | 2 | 10/1990 | 07119901515 | $0.30 | Shop at ECS Tuning | |||
| 17 | Afdekkap | 2 | 10/1990 | 51111888293 | $5.18 | Shop at ECS Tuning | ||||
| 18 | Moer | ST6.3 ZN | 2 | 10/1990 | 51111900386 | $2.90 | Vervallen | Shop at ECS Tuning | ||
| 23 | Set bevestigingsonderdelen | 1 | 10/1990 | 51119057083 | $51.83 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
