Bekleding bumpers voor M technic for BMW 5 Series E34 525ix (1991)

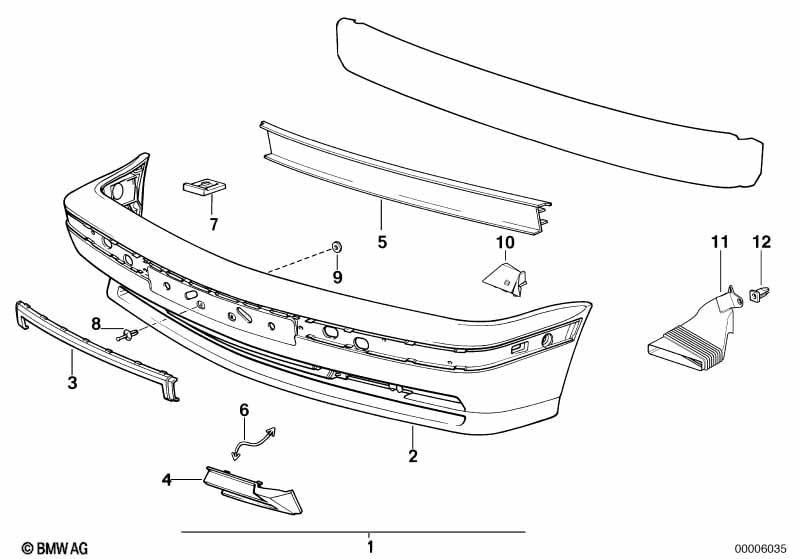

This Bekleding bumpers voor M technic technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | SLECHTS PASSEND BIJ M TECHNIC slechts passend bij INDIVIDUALSERIE 95 540I SPORT |
|||||||||
| 02 | Bekleding bumper voor | M TECHNIC | 1 | 51112231634 | $638.00 | Vervallen | Shop at ECS Tuning | |||
| 02 | Bekleding | CODE - UNI | 1 | 51119066763 | Vervallen | Shop at ECS Tuning | ||||
| Bestelling met kleur-code | ||||||||||
| 02 | Bekleding | CODE - MET. | 1 | 51119066764 | Vervallen | Shop at ECS Tuning | ||||
| Bestelling met kleur-code | ||||||||||
| 03 | Bumperlijst | M TECHNIC | 1 | 51112230369 | $14.10 | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor japan |
L807A=Ja |
|||||||||
| 03 | Bumperlijst | M TECHNIC | 1 | 51112250588 | $68.18 | Shop at ECS Tuning | ||||
| 04 | Afdekking links | M TECHNIC | 1 | 02/1990 | 51112232631 | $33.90 | Shop at ECS Tuning | |||
| 04 | Afdekking rechts | M TECHNIC | 1 | 02/1990 | 51112232632 | $33.90 | Shop at ECS Tuning | |||
| 04 | Afdekking links | CODE - UNI | 1 | 02/1990 | 51119066769 | Vervallen | Shop at ECS Tuning | |||
| Bestelling met kleur-code | ||||||||||
| 04 | Afdekking links | CODE - MET. | 1 | 02/1990 | 51119066770 | Vervallen | Shop at ECS Tuning | |||
| Bestelling met kleur-code | ||||||||||
| 04 | Afdekking rechts | CODE - UNI | 1 | 02/1990 | 51119066771 | Vervallen | Shop at ECS Tuning | |||
| Bestelling met kleur-code | ||||||||||
| 04 | Afdekking rechts | CODE - MET. | 1 | 02/1990 | 51119066772 | Vervallen | Shop at ECS Tuning | |||
| Bestelling met kleur-code | ||||||||||
| 05 | Afdekking | M TECHNIC | 1 | 51112230372 | $33.90 | Vervallen | Shop at ECS Tuning | |||
| 06 | Bevestigingsband | 4 | 51111973721 | $0.77 | Shop at ECS Tuning | |||||
| 07 | Spie | M TECHNIC | 8 | 51112239702 | $0.30 | Shop at ECS Tuning | ||||
| 08 | Spreidnagel zwart | L=15MM | 8 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 09 | Afstandsring | 8 | 51111953643 | $3.24 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
