Scherm bekleding op zij for BMW 8 Series E31 850Ci (1991)

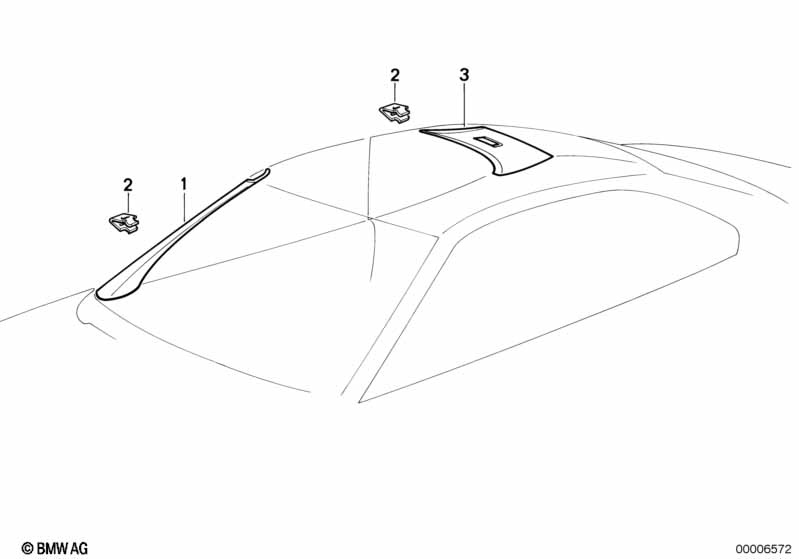

This Scherm bekleding op zij technical drawing provides a detailed breakdown of the assembly for the 8 Series E31 850Ci. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | SCHERM rijwindgeleider LINKS | SILBERGRAU | 1 | 09/1992 | 51438117231 | $78.36 | Vervallen | Shop at ECS Tuning | ||
| 01 | Scherm torpedofront rechts | SILBERGRAU | 1 | 09/1992 | 51438117232 | $75.70 | Vervallen | Shop at ECS Tuning | ||
| 01 | SCHERM rijwindgeleider LINKS | SCHWARZ | 1 | 09/1992 | 51438152741 | $73.91 | Vervallen | Shop at ECS Tuning | ||
| 01 | Scherm torpedofront rechts | SCHWARZ | 1 | 09/1992 | 51438152742 | $73.91 | Vervallen | Shop at ECS Tuning | ||
| 02 | Klem | X | 51437194187 | $1.98 | Shop at ECS Tuning | |||||
| 03 | Scherm kolom achter links | SILBERGRAU | 1 | 09/1992 | 51438117235 | $111.04 | Vervallen | Shop at ECS Tuning | ||
| 03 | Scherm kolom achter rechts | SILBERGRAU | 1 | 09/1992 | 51438117236 | $111.04 | Vervallen | Shop at ECS Tuning | ||
| 03 | Scherm kolom achter links | SCHWARZ | 1 | 09/1992 | 51438152743 | $102.39 | Vervallen | Shop at ECS Tuning | ||
| 03 | Scherm kolom achter rechts | SCHWARZ | 1 | 09/1992 | 51438152744 | $156.24 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 8 Series E31 850Ci Scherm bekleding op zij?
- This technical diagram illustrates the Scherm bekleding op zij within the Voertuig uitrusting group for the 8 Series E31 850Ci produced during 1991. It provides a detailed exploded view of the components, identifying key parts such as the SCHERM rijwindgeleider LINKS (Part #51438117231).
- Which models use the hardware listed in this Scherm bekleding op zij?
- The hardware and components featured in the Scherm bekleding op zij are specific to the 8 Series E31 850Ci produced during 1991. These technical specifications ensure that parts like the SCHERM rijwindgeleider LINKS (51438117231) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Scherm bekleding op zij assembly?
- Each item in the Scherm bekleding op zij corresponds to the numbered list below the illustration. For the 8 Series E31 850Ci, you can identify the SCHERM rijwindgeleider LINKS by locating its position on the schematic, which then links to the official BMW part number 51438117231 for the Voertuig uitrusting section.
