Warmte isolering ruimteb bodem for BMW 5 Series E34 525ix (1991)

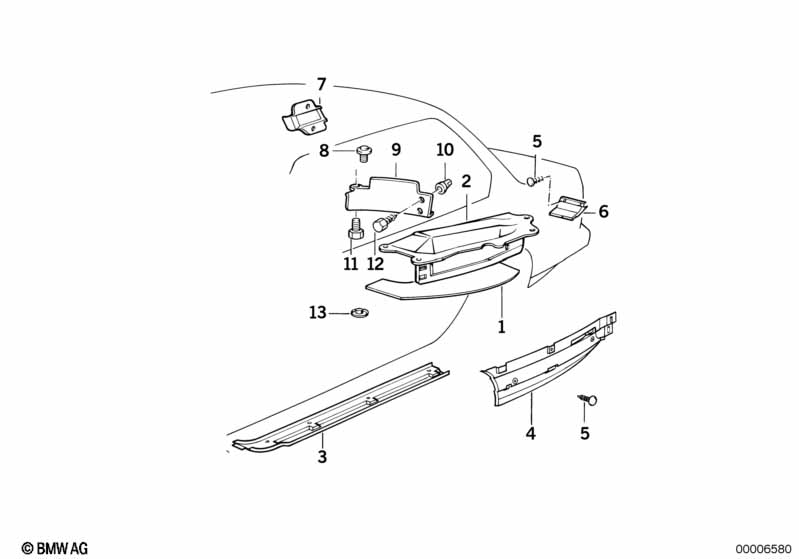

This Warmte isolering ruimteb bodem technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 525ix. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1991.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Warmte isolering ruimteb bodem | 1 | 51481938143 | $56.50 | Shop at ECS Tuning | |||||
| 02 | Warmte isolering achter uitlaatdemper | 1 | 51488137981 | $112.56 | Shop at ECS Tuning | |||||
| 02 | Warmte isolering achter uitlaatdemper | 1 | 51488181383 | $35.43 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Hittebestendige plaat | 1 | 63121388812 | $35.15 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Hittebestendige plaat | SERVICE | 1 | 63121388920 | $83.68 | Vervallen | Shop at ECS Tuning | |||
| 04 | Warmteisolering | 1 | 51481946287 | $48.77 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Splijtnagel | D = 6MM | X | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 05 | Spreidnagel zwart | L=15MM | 7 | 51111944537 | $0.30 | Shop at ECS Tuning | ||||
| 06 | Warmteisolering | 1 | 51481946449 | $23.42 | Shop at ECS Tuning | |||||
| 07 | Warmte-isolatie links | 1 | 63311381825 | $3.95 | Shop at ECS Tuning | |||||
| 07 | Warmteisolering rechts | 1 | 63311381826 | $3.68 | Shop at ECS Tuning | |||||
| 07 | Warmteisolering | 1 | 63311391439 | $38.55 | Vervallen | Shop at ECS Tuning | ||||
| 08 | Plug | 1 | 61661369424 | $0.33 | Shop at ECS Tuning | |||||
| 09 | Stoot scherm-benzinetank | 1 | 51711969290 | $95.55 | Shop at ECS Tuning | |||||
| 10 | Insteekmoer | 1 | 51181852299 | $0.23 | Shop at ECS Tuning | |||||
| 11 | Zeskantige schroef met schijf | M10X16-Z3 | 1 | 07119913948 | $0.65 | Shop at ECS Tuning | ||||
| 12 | Zeskantschroef voor blik | ST4,8X16-ZNS3 | 1 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 13 | Moer | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
