Aggregatendrager middenconsole for BMW 5 Series E39 528i (1996)

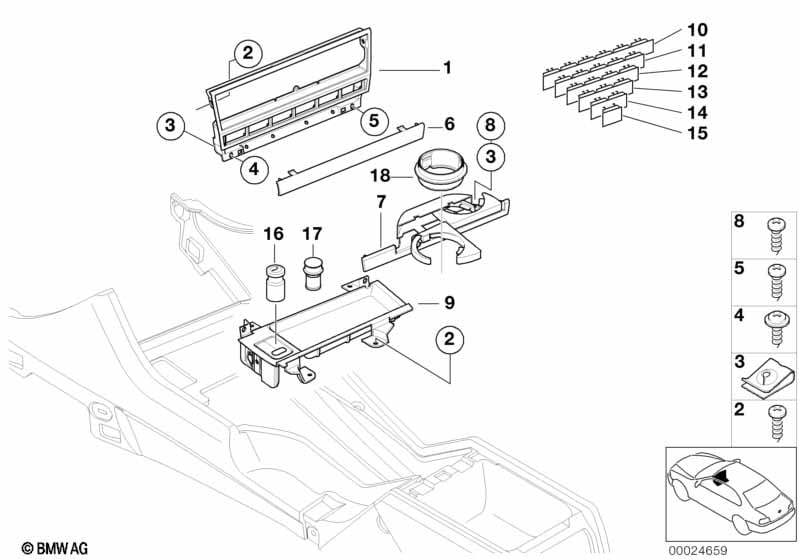

This Aggregatendrager middenconsole technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Middenkonsole instrumentendrager | 1 | 09/1998 | 51168233461 | $47.08 | Shop at ECS Tuning | ||||
| 02 | Schroef thermoplast. kunststof | 4X16MM | 2 | 07119900591 | $0.25 | Shop at ECS Tuning | ||||
| 03 | C-clip moer | 4 | 07146988451 | $0.36 | Shop at ECS Tuning | |||||
| 04 | Blikschroef | 4,2X13 | 2 | 07119904310 | $0.38 | Shop at ECS Tuning | ||||
| 05 | Lenskopschroef met onderlegring | DELTA PT4X12 | 2 | 07149200941 | Shop at ECS Tuning | |||||
| 06 | Sierafd.instrumentendrager | CUBIC | 1 | 09/1998 | 51168185256 | $24.37 | Vervallen | Shop at ECS Tuning | ||
| Voor voertuigen met Houtuitvöring |
=Ja |
|||||||||
| 06 | Sierafd.instrumentendrager | STAHLGRAU | 1 | 51168160136 | $24.37 | +core | Shop at ECS Tuning | |||
| 07 | Blikjeshouder voor | SCHWARZ | 1 | 51168190205 | $50.22 | Shop at ECS Tuning | ||||
| 08 | Verz.bolkopschroef | ST4,2X13-Z2 | 2 | 07119907939 | $0.11 | Shop at ECS Tuning | ||||
| 09 | Opbergvak middenconsole voor | SCHWARZ | 1 | 51168159694 | $54.41 | Shop at ECS Tuning | ||||
| 10 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161563 | $6.40 | Shop at ECS Tuning | |||
| 11 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161564 | $5.94 | Shop at ECS Tuning | |||
| 12 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161565 | $5.43 | Shop at ECS Tuning | |||
| 13 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161566 | $4.95 | Shop at ECS Tuning | |||
| 14 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161567 | $4.51 | Shop at ECS Tuning | |||
| 15 | Schakelaarsierrand | SCHWARZ | 1 | 09/1998 | 51168161568 | $3.57 | Shop at ECS Tuning | |||
| 16 | Aanstekerknopinzet | 1 | 09/1996 | 61341375967 | $19.58 | Vervallen | Shop at ECS Tuning | |||

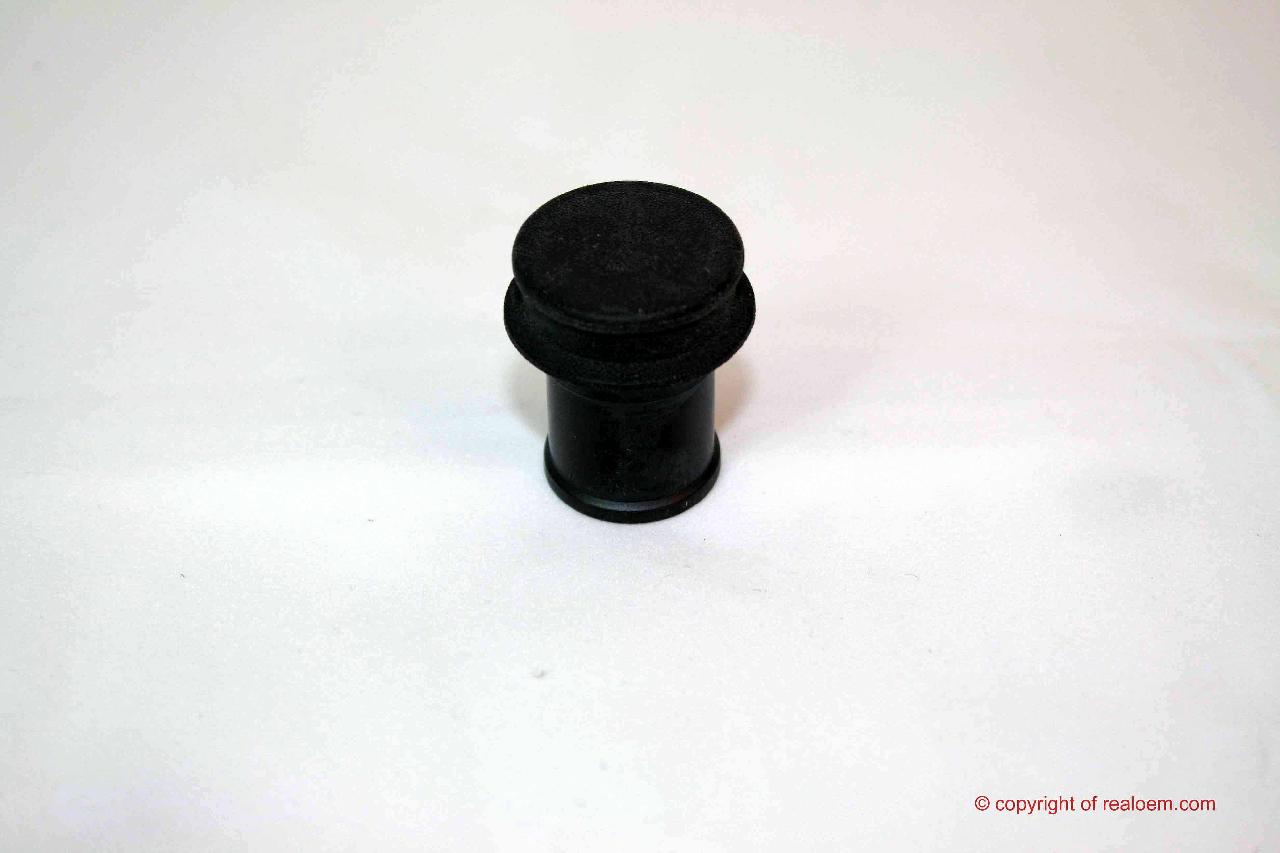

| 17 | Plug | 1 | 09/1996 | 51168119660 | $1.93 | Shop at ECS Tuning | ||||
| Voor voertuigen met Alleen voor japan |
L807A=Ja |
|||||||||
| 18 | Adapter blikjeshouder voor | 1 | 51168218787 | $6.10 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
