Vloerbekleding for BMW 5 Series E39 528i (1996)

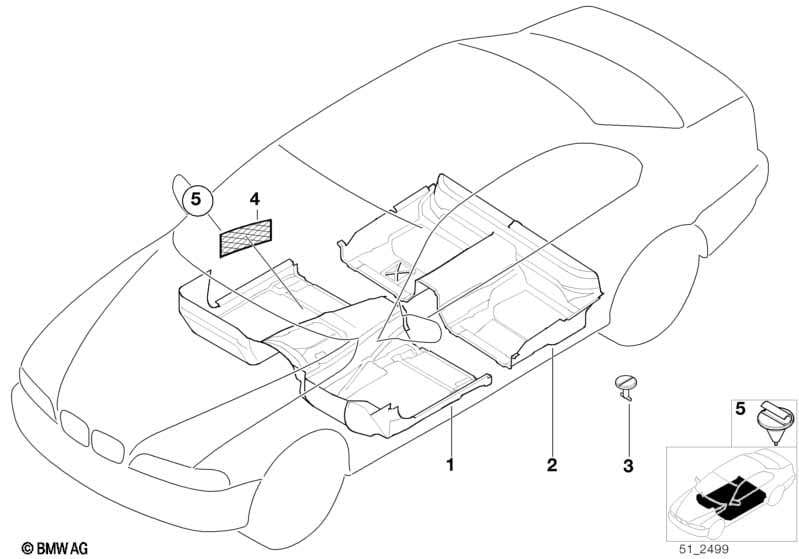

This Vloerbekleding technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Vloerbedekking voor | DUNKELGRUEN | 1 | 51478203999 | $616.59 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | SANDBEIGE | 1 | 51478204000 | $667.33 | Shop at ECS Tuning | ||||
| 01 | Vloerbedekking voor | MARINEBLAU | 1 | 51478204001 | $667.33 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | GRAU | 1 | 51478204002 | $667.33 | Shop at ECS Tuning | ||||
| 01 | Vloerbedekking voor | ANTHRAZIT | 1 | 51478204003 | $667.33 | Vervallen | Shop at ECS Tuning | |||
| Voor voertuigen met Latentvarmteaccumulator |
=Ja |
|||||||||
| 01 | Vloerbedekking voor | ANTHRAZIT | 1 | 51478213641 | $667.33 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | GRAU | 1 | 51478213642 | $667.33 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | MARINEBLAU | 1 | 51478213643 | $616.59 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | SANDBEIGE | 1 | 51478213644 | $667.33 | Vervallen | Shop at ECS Tuning | |||
| 01 | Vloerbedekking voor | DUNKELGRUEN | 1 | 51478213645 | $616.59 | Vervallen | Shop at ECS Tuning | |||
| 02 | Vloerbekleding achter | ANTHRAZIT | 1 | 51478169523 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Vloerbekleding achter | GRAU | 1 | 51478169524 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Vloerbekleding achter | MARINEBLAU | 1 | 51478169525 | $546.40 | Vervallen | Shop at ECS Tuning | |||
| 02 | Vloerbekleding achter | SANDBEIGE | 1 | 51478169527 | $546.40 | Shop at ECS Tuning | ||||
| 02 | Vloerbekleding achter | DUNKELGRUEN | 1 | 51478169528 | $494.39 | Vervallen | Shop at ECS Tuning | |||
| 03 | Draaisluiting 18mm | ANTHRAZIT | 8 | 51478127272 | $1.03 | Shop at ECS Tuning | ||||
| 03 | Draaisluiting 18mm | GRAU | 8 | 51478177603 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Draaisluiting 18mm | MARINEBLAU | 8 | 51478177604 | $0.88 | Shop at ECS Tuning | ||||
| 03 | Draaisluiting 18mm | SANDBEIGE | 8 | 51478177605 | $1.10 | Shop at ECS Tuning | ||||
| 03 | Draaisluiting 18mm | ENGLISCHGRÜN | 8 | 51478177608 | $0.88 | Shop at ECS Tuning | ||||
| NIET PASSEND BIJ LATENTVARMTEACCUMULATOR |
||||||||||
| 04 | Opbergnet | 1 | 51472277265 | $28.56 | Shop at ECS Tuning | |||||

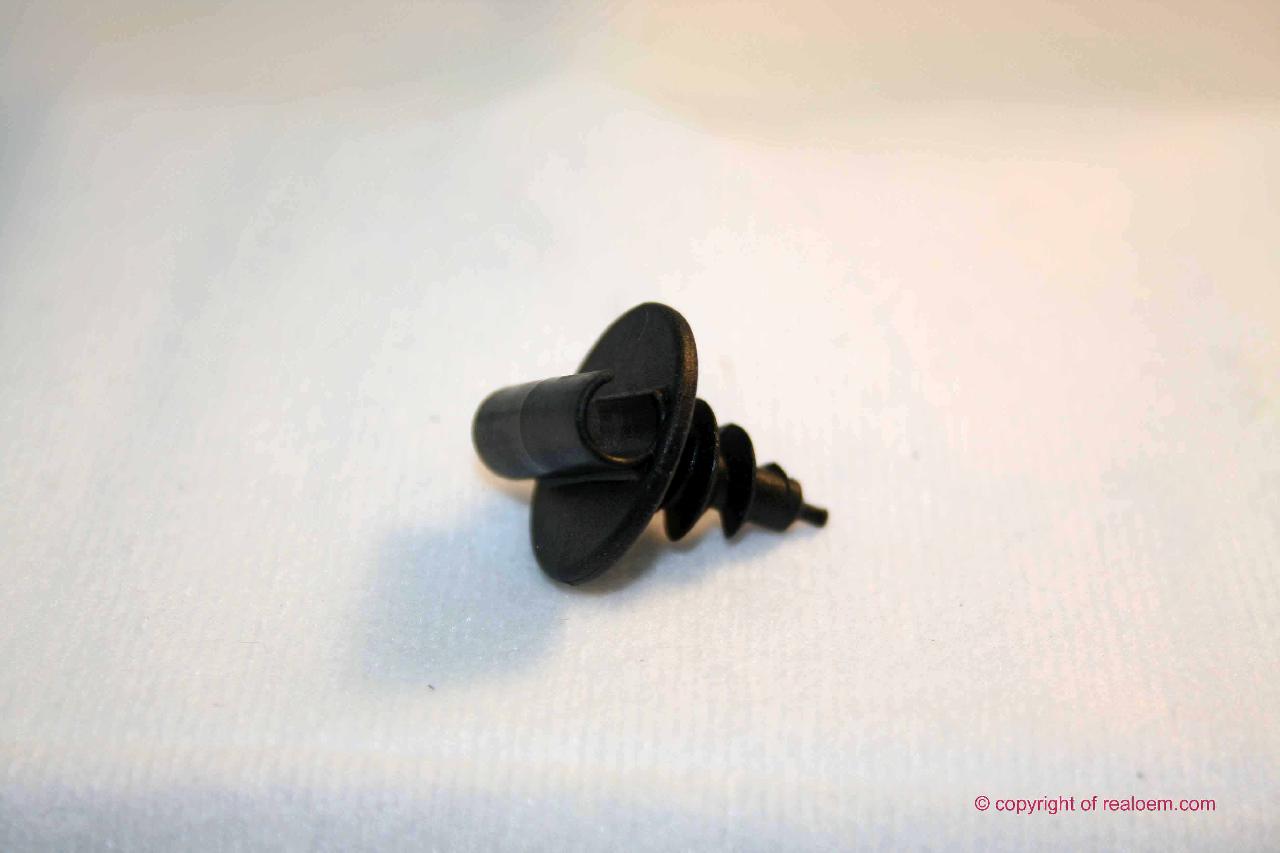

| 05 | Bevestigingselement | 4 | 51472263062 | $0.50 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
