Geluidsisolatie voor for BMW 5 Series E39 528i (1996)

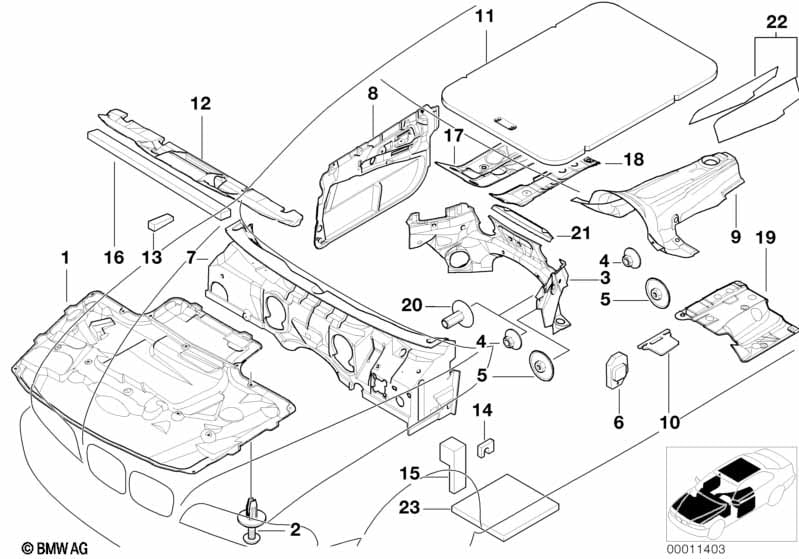

This Geluidsisolatie voor technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Geluidsisolatie motorkap | 1 | 51488159483 | $114.23 | Shop at ECS Tuning | |||||
| 02 | Splijtnagel | D=7,5MM | X | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| 03 | Geluidsisolatie voorpaneel motorruim li. | 1 | 51488186505 | $46.93 | Vervallen, +core | Shop at ECS Tuning | ||||
| 03 | Geluidsisolatie voorpaneel motorruim re. | 1 | 51488186506 | $46.93 | +core | Shop at ECS Tuning | ||||
| 04 | Drukknop | D=30MM;H=13MM | X | 51481923999 | $0.42 | Shop at ECS Tuning | ||||
| 05 | Moer | D=30MM, ZNS3 | X | 07146949380 | $0.44 | Shop at ECS Tuning | ||||
| 05 | Drukknop | D=34MM | X | 51481884110 | $0.42 | Shop at ECS Tuning | ||||
| 06 | Geluidsisolatie A-kolom links | 1 | 51488201447 | $11.47 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Geluidsisolatie voorpaneel boven | 1 | 51488243776 | $110.48 | Shop at ECS Tuning | |||||
| 08 | Geluidsisolatie deur voor links | 1 | 09/1996 | 51488159935 | $34.42 | +core | Shop at ECS Tuning | |||
| 08 | Geluidsisolatie deur voor rechts | 1 | 09/1996 | 51488159936 | $34.42 | +core | Shop at ECS Tuning | |||
| Voor voertuigen met Zijdenairbag |
=Ja |
|||||||||
| 08 | Geluidsisolatie deur voor links | 1 | 09/1996 | 51488170211 | $52.87 | +core | Shop at ECS Tuning | |||
| 08 | Geluidsisolatie deur voor rechts | 1 | 09/1996 | 51488170212 | $52.87 | +core | Shop at ECS Tuning | |||
| 08 | Geluidsisolatie deur voor links | 1 | 51487055929 | $34.42 | Shop at ECS Tuning | |||||
| 08 | Geluidsisolatie deur voor rechts | 1 | 51487055930 | $34.42 | Shop at ECS Tuning | |||||
| 09 | Geluidsisolatie tunnel voor | 1 | 09/1998 | 51488159487 | $104.63 | +core | Shop at ECS Tuning | |||
| 10 | Geluidsisolatie B-kolom onder | 2 | 51488167676 | $3.45 | Vervallen | Shop at ECS Tuning | ||||
| 11 | Verplaatsing dak | 1 | 51488171321 | $42.13 | +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Schuifhefdak |
=Ja |
|||||||||
| 11 | Verplaatsing dak | 1 | 51488159507 | $22.60 | Shop at ECS Tuning | |||||
| 12 | Geluidsisolatie instrumentpaneel | 1 | 51458189341 | $34.42 | Vervallen | Shop at ECS Tuning | ||||
| 13 | Geluidsisolatie A-kolom boven | 2 | 51488218225 | $3.45 | Shop at ECS Tuning | |||||
| 14 | Geluidsisolatie v waterafloop verwarming | 2 | 51488218198 | $1.15 | Vervallen | Shop at ECS Tuning | ||||
| 15 | Geluidsisolatie verwarming | 2 | 51488218197 | $5.70 | Vervallen | Shop at ECS Tuning | ||||
| 16 | Geluidsisolatie torpedofront | L=1367MM | 1 | 51457055907 | $12.97 | Shop at ECS Tuning | ||||
| 17 | Multilaag demping vloer voor rechts | 1 | 51488167800 | $45.65 | Vervallen | Shop at ECS Tuning | ||||
| 18 | Multilaag demping vloer binnen rechts | 1 | 51488165638 | $28.67 | Shop at ECS Tuning | |||||
| 19 | Multilaag demping vloer voor links | 1 | 51488167799 | $45.65 | Vervallen | Shop at ECS Tuning | ||||
| 20 | Kunststof moer | 1 | 51488209724 | $0.58 | Shop at ECS Tuning | |||||
| 21 | Bevestiging geluidisolatie voorpaneel | 3 | 51488236400 | $3.62 | Shop at ECS Tuning | |||||
| 22 | Set geluidisolatie middenconsole | 1 | 51488159689 | $22.95 | Shop at ECS Tuning | |||||
| 23 | Anti-dreunlaag | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
