Afsluitdeksel/afsluitdop for BMW 5 Series E39 528i (1996)

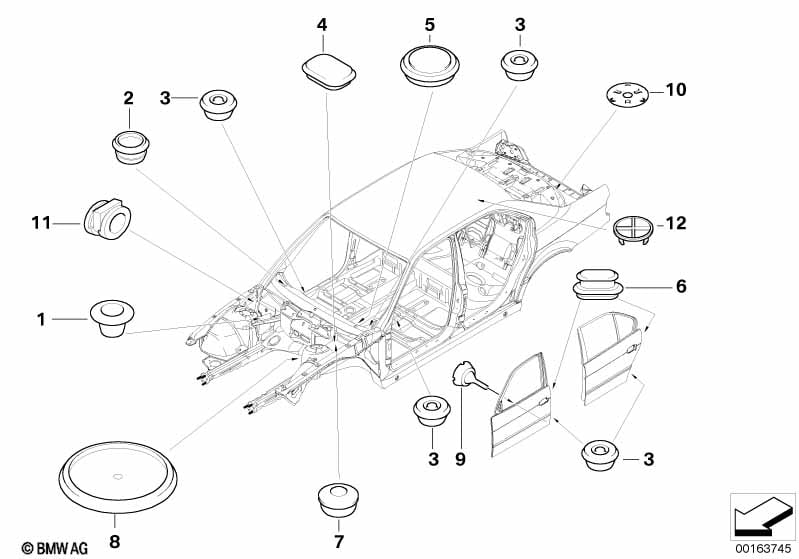

This Afsluitdeksel/afsluitdop technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = steekcirkeldiameter in de carrosserie |
|||||||||
| 01 | Plug | D=8MM | 2 | 51718204406 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Plug | D=12MM | 3 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 04 | Plug | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Plug | D=35MM | 1 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Plug | 24X12 | 4 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
| 07 | Plug | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 09 | Schijf | 2 | 51338201206 | $0.87 | Shop at ECS Tuning | |||||
| 10 | Sluitdeksel | D=144MM | 1 | 41128200462 | $5.07 | Vervallen | Shop at ECS Tuning | |||
| 11 | Plug | D=21MM | 1 | 13531712239 | $1.93 | Shop at ECS Tuning | ||||
| 12 | Carrosserieplug met smeltlijmring | D=35MM | X | 07/2003 | 41007140847 | $0.68 | Vervallen | Shop at ECS Tuning | ||
| 12 | Lakstop | D=35MM | X | 51915A0C2C4 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E39 528i Afsluitdeksel/afsluitdop?
- This technical diagram illustrates the Afsluitdeksel/afsluitdop within the Voertuig uitrusting group for the 5 Series E39 528i produced during 1996. It provides a detailed exploded view of the components, identifying key parts such as the Plug (Part #51718204406).
- Which models use the hardware listed in this Afsluitdeksel/afsluitdop?
- The hardware and components featured in the Afsluitdeksel/afsluitdop are specific to the 5 Series E39 528i produced during 1996. These technical specifications ensure that parts like the Plug (51718204406) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Afsluitdeksel/afsluitdop assembly?
- Each item in the Afsluitdeksel/afsluitdop corresponds to the numbered list below the illustration. For the 5 Series E39 528i, you can identify the Plug by locating its position on the schematic, which then links to the official BMW part number 51718204406 for the Voertuig uitrusting section.
