Afsluitdeksel/afsluitdop for BMW 5 Series E39 528i (1996)

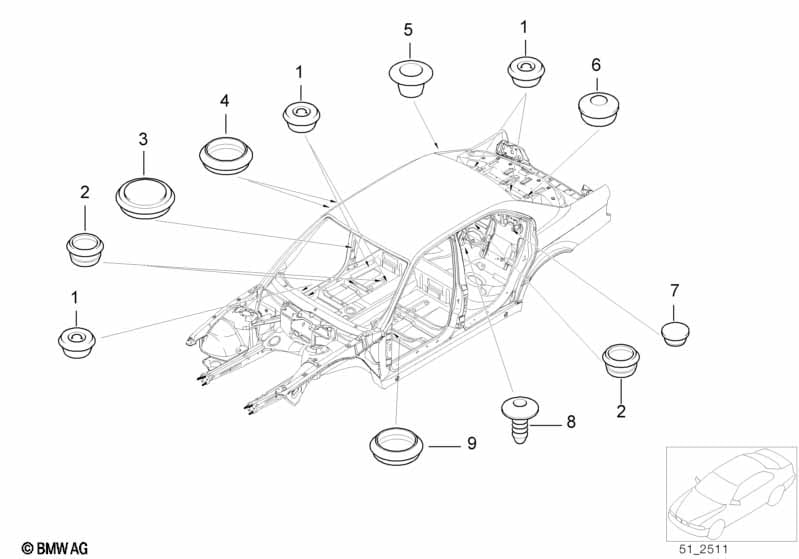

This Afsluitdeksel/afsluitdop technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = steekcirkeldiameter in de carrosserie |
|||||||||
| 01 | Plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 02 | Plug | D=12MM | 7 | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Plug | D=35MM | 2 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 04 | Plug | D=25MM | 6 | 51718126605 | $0.39 | Shop at ECS Tuning | ||||
| 05 | Plug | D=8MM | 4 | 51718204406 | $0.18 | Shop at ECS Tuning | ||||
| 06 | Plug | D=15MM | 3 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Plug | D=18MM | 1 | 51718222691 | $0.32 | Shop at ECS Tuning | ||||
| 07 | Afdekkap | D=16,5MM | 2 | 51711839321 | $0.26 | Shop at ECS Tuning | ||||
| 08 | Plug | D=6.35MM | 2 | 51718137323 | $1.02 | Shop at ECS Tuning | ||||
| 09 | Plug | D=28MM | 2 | 51718138511 | $0.69 | Shop at ECS Tuning | ||||
