Scherm, voorkiezerhefboom for BMW 5 Series E39 528i (1996)

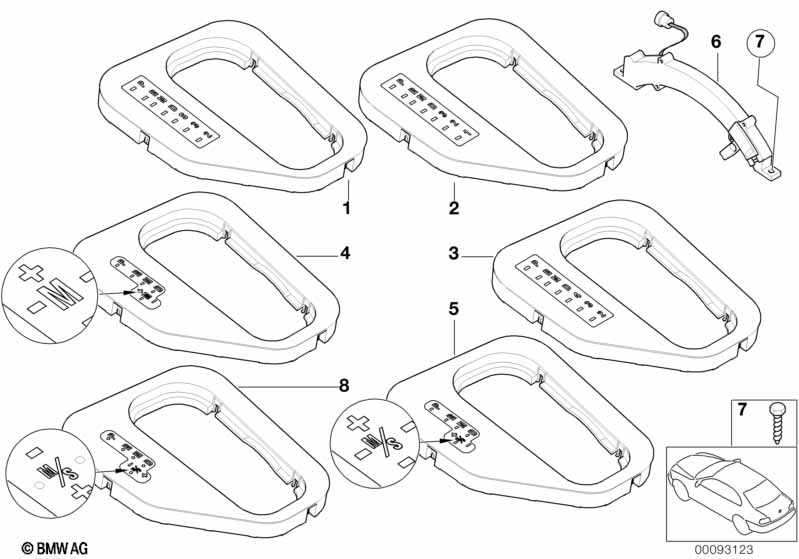

This Scherm, voorkiezerhefboom technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1996.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Scherm, voorkiezerhefboom | SCHWARZ | 1 | 51168184522 | $162.89 | Shop at ECS Tuning | ||||
| 04 | Scherm voorkiezerhefb. steptronic | SCHWARZ | 1 | 51168193009 | $168.40 | Vervallen | Shop at ECS Tuning | |||
| Voor voertuigen met Steptronic/sportprogram. |
=Ja |
|||||||||
| 05 | Scherm voorkiezerhefb. steptronic | SCHWARZ | 1 | 51168221525 | $168.40 | Vervallen | Shop at ECS Tuning | |||
| 06 | Sierafdekking keuzestandschakelaar | 1 | 51168171666 | $169.95 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Schroef | M3.5X10MM | 2 | 07119910393 | $0.22 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
