Zicht bescherming rolluik for BMW 5 Series E39 530i (2001)

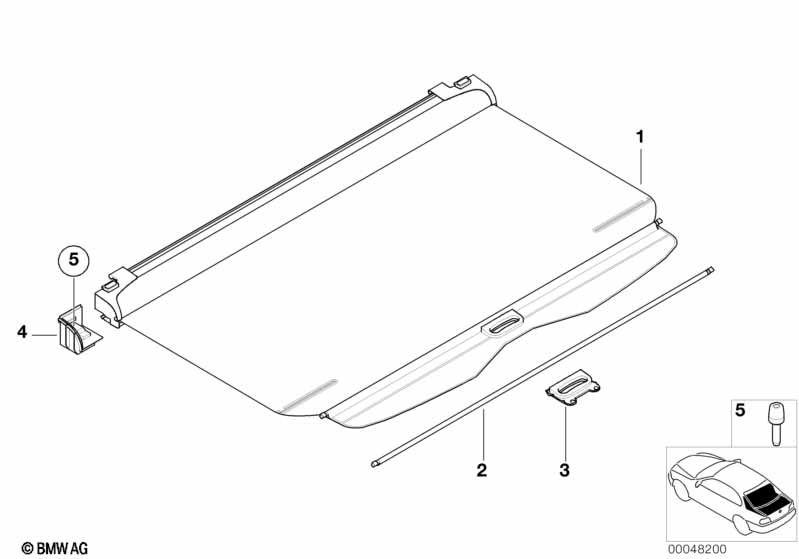

This Zicht bescherming rolluik technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Zicht bescherming rolluik | SCHWARZ | 1 | 51478217308 | $549.57 | Shop at ECS Tuning | ||||
| 01 | Zicht bescherming rolluik | GRAU | 1 | 51478217319 | $549.57 | Vervallen | Shop at ECS Tuning | |||
| 01 | Zicht bescherming rolluik | MARINEBLAU | 1 | 51478217320 | $502.20 | Vervallen | Shop at ECS Tuning | |||
| 01 | Zicht bescherming rolluik | DUNKELGRUEN | 1 | 51478217321 | $502.20 | Vervallen | Shop at ECS Tuning | |||
| 01 | Zicht bescherming rolluik | SANDBEIGE | 1 | 51478217322 | $549.57 | Vervallen | Shop at ECS Tuning | |||
| 02 | Uittrekstang zicht bescherming rolluik | 1 | 51477009055 | $17.14 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Handgreep zicht bescherming rolluik | SCHWARZ | 1 | 51478235761 | $22.20 | Shop at ECS Tuning | ||||
| 04 | Steun v zicht bescherming rolhoes links | 1 | 03/2000 | 51477026709 | $34.30 | Shop at ECS Tuning | ||||
| 04 | Steun v zicht bescherming rolhoes rechts | 1 | 03/2000 | 51477026710 | $34.30 | Vervallen | Shop at ECS Tuning | |||
| 05 | Torx-bout | M5X19 | 4 | 07143450893 | $0.86 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
