Afsluitdeksel/afsluitdop for BMW 5 Series E39 530i (2001)

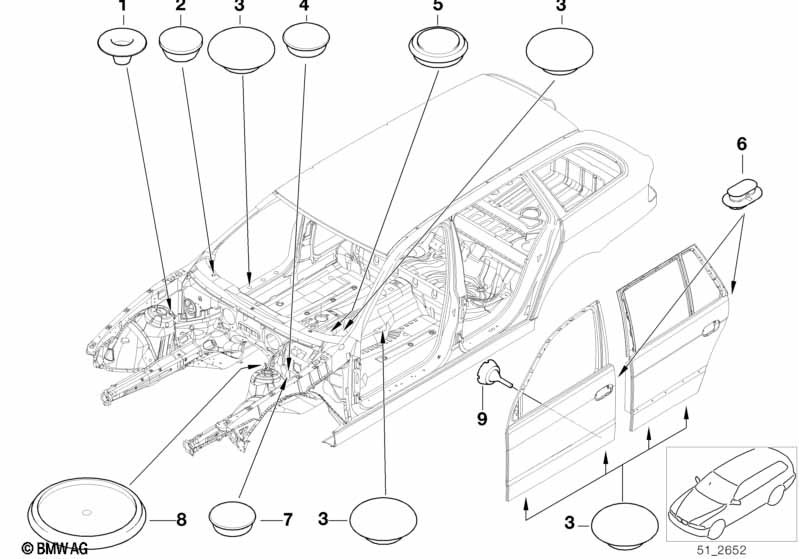

This Afsluitdeksel/afsluitdop technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | D = steekcirkeldiameter in de carrosserie |
|||||||||
| 01 | Plug | D=8MM | 2 | 51718204406 | $0.18 | Shop at ECS Tuning | ||||
| 02 | Plug | D=12MM | X | 51718110199 | $0.18 | Shop at ECS Tuning | ||||
| 03 | Plug | D=20MM | X | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 04 | Plug | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 05 | Plug | D=35MM | 1 | 07147140849 | $0.73 | Shop at ECS Tuning | ||||
| 06 | Plug | 24X12 | 4 | 51211975404 | $1.26 | Shop at ECS Tuning | ||||
| 07 | Plug | D=13,5MM | 1 | 51711974209 | $1.03 | Shop at ECS Tuning | ||||
| 07 | Plug | D=15MM | 1 | 51718170298 | $0.23 | Shop at ECS Tuning | ||||
| 08 | Sluitdeksel | D=93X76MM | 1 | 51718186631 | $2.40 | Shop at ECS Tuning | ||||
