Bumper achter for BMW 1502-2002tii 2002tii (1973)

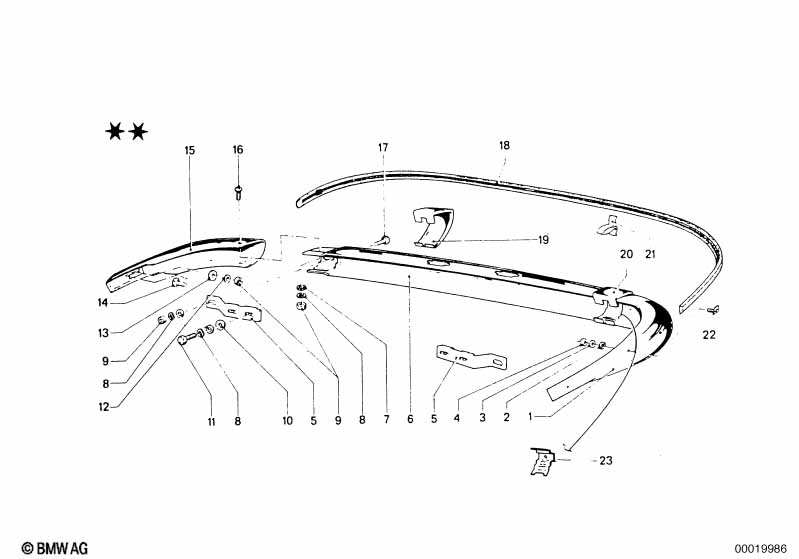

This Bumper achter technical drawing provides a detailed breakdown of the assembly for the 1502-2002tii 2002tii. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1973.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper achter links | 1 | 04/1971 | 12/1977 | 51121815485 | $299.64 | Shop at ECS Tuning | |||
| 03 | Onderzetterplaat | A6,4-ZNNIV SI | 2 | 04/1971 | 12/1977 | 07119904202 | Shop at ECS Tuning | |||
| 04 | Zelfborgende zeskantige moer | M6 | 2 | 04/1971 | 12/1977 | 64509123157 | $0.70 | Shop at ECS Tuning | ||
| 05 | Veerbeugel | 2 | 04/1971 | 12/1977 | 51125470060 | $17.16 | Shop at ECS Tuning | |||
| 06 | Bumper achter midden | 1 | 04/1971 | 12/1977 | 51121815656 | $322.08 | Vervallen | Shop at ECS Tuning | ||
| 07 | Onderzetterplaat | 10-200 HV-ZNNIV | 4 | 04/1971 | 12/1977 | 07119904168 | $8.35 | Shop at ECS Tuning | ||
| 08 | Veerring | 8,4X15-ZNS3 | 10 | 04/1971 | 12/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| 09 | Zeskantige moer met plaat | M8 | 8 | 04/1971 | 12/1977 | 51117070183 | $0.77 | Shop at ECS Tuning | ||
| 11 | Zeskantige Schroef | M8X30-ZN | 4 | 04/1971 | 12/1977 | 07119913662 | $0.22 | Shop at ECS Tuning | ||
| 12 | Onderzetterplaat | 8,4X24X2-ZNS3 | 8 | 04/1971 | 12/1977 | 07119904164 | $0.40 | Shop at ECS Tuning | ||
| 13 | Rubberring | 2 | 04/1971 | 12/1977 | 51125071765 | $1.21 | Vervallen | Shop at ECS Tuning | ||
| 14 | Vlakke cil.-schroef | M8X20 | 2 | 04/1971 | 12/1977 | 07119910437 | $0.52 | Shop at ECS Tuning | ||
| 15 | Bumper achter rechts | 1 | 04/1971 | 12/1977 | 51121815486 | $299.64 | Shop at ECS Tuning | |||
| 16 | Schroef | 4 | 04/1971 | 12/1977 | 51111804582 | $6.03 | Vervallen | Shop at ECS Tuning | ||
| 17 | Vlakke cil.-schroef | M8X40 | 2 | 04/1971 | 12/1977 | 07119910463 | $0.92 | Shop at ECS Tuning | ||
| 18 | Bumperlijst | 1 | 04/1971 | 12/1977 | 51121815754 | $154.23 | Shop at ECS Tuning | |||
| 19 | Afdekking | 1 | 04/1971 | 12/1977 | 51121815482 | $61.09 | Vervallen | Shop at ECS Tuning | ||
| 20 | Afdekking | 1 | 04/1971 | 12/1977 | 51121815481 | $61.06 | Vervallen | Shop at ECS Tuning | ||
| 21 | Parkerklem | 15 | 04/1971 | 12/1977 | 51111826895 | $2.72 | Shop at ECS Tuning | |||
| 22 | Parkerschroef | 2 | 04/1971 | 12/1977 | 51111815611 | $2.26 | Shop at ECS Tuning | |||
| 23 | Onderlegger | 2 | 04/1971 | 12/1977 | 51125470065 | $25.27 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 1502-2002tii 2002tii Bumper achter?
- This technical diagram illustrates the Bumper achter within the Voertuig uitrusting group for the 1502-2002tii 2002tii produced during 1973. It provides a detailed exploded view of the components, identifying key parts such as the Bumper achter links (Part #51121815485).
- Which models use the hardware listed in this Bumper achter?
- The hardware and components featured in the Bumper achter are specific to the 1502-2002tii 2002tii produced during 1973. These technical specifications ensure that parts like the Bumper achter links (51121815485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Bumper achter assembly?
- Each item in the Bumper achter corresponds to the numbered list below the illustration. For the 1502-2002tii 2002tii, you can identify the Bumper achter links by locating its position on the schematic, which then links to the official BMW part number 51121815485 for the Voertuig uitrusting section.
