M-afdeklijst dorpel / wielkuip for BMW 7 Series G12 740LiX (2018)

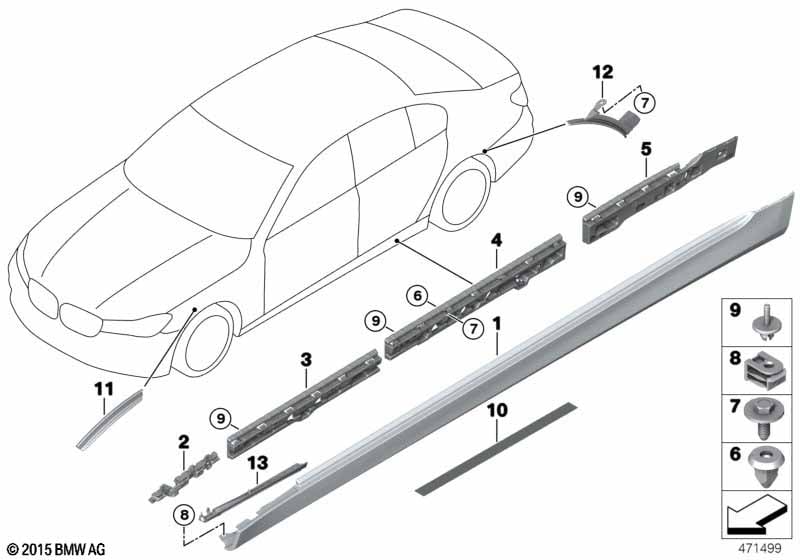

This M-afdeklijst dorpel / wielkuip technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 740LiX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met M aerodynamiek-kit |
S715A=Ja |
||||||||
| 01 | Dorpelafdekking gegrond links | M | 1 | 51778064983 | Shop at ECS Tuning | |||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Houder lichtmodule links | 1 | 63148062937 | Shop at ECS Tuning | ||||||
| 01 | Dorpelafdekking gegrond rechts | M | 1 | 51778064984 | Shop at ECS Tuning | |||||
| Voor de reparatie noodzakelijk | ||||||||||
| -- | Houder lichtmodule rechts | 1 | 63148062938 | Shop at ECS Tuning | ||||||
| 02 | Bevestigingslijst dorpel voor links | 1 | 51777357131 | Shop at ECS Tuning | ||||||
| 02 | Bevestigingslijst dorpel voor rechts | 1 | 51777357132 | Shop at ECS Tuning | ||||||
| 03 | Steunstrip zijskirt midden links | 1 | 51777357133 | Shop at ECS Tuning | ||||||
| 03 | Steunstrip zijskirt midden rechts | 1 | 51777357134 | Shop at ECS Tuning | ||||||
| 04 | Steunstrip zijskirt midden links | 1 | 51777357135 | Shop at ECS Tuning | ||||||
| 04 | Steunstrip zijskirt midden rechts | 1 | 51777357136 | Shop at ECS Tuning | ||||||
| 05 | Bevestigingslijst dorpel achter links | 1 | 51777357139 | Shop at ECS Tuning | ||||||
| 05 | Bevestigingslijst dorpel achter rechts | 1 | 51777357140 | Shop at ECS Tuning | ||||||
| 06 | Spanmoer | 8X8 MM | 4 | 51127020321 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Zeskantschroef voor blik | 4 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 08 | C-clip kunststof moer | TS5 | 2 | 07147311312 | Shop at ECS Tuning | |||||
| 09 | Splijtnagel | 16 | 07147213303 | Shop at ECS Tuning | ||||||
| 10 | Schuurbeschermingsfolie | SEITENRAHMEN | 2 | 51177381359 | Shop at ECS Tuning | |||||
| 13 | Houder lichtmodule links | 1 | 63148062937 | Shop at ECS Tuning | ||||||
| 13 | Houder lichtmodule rechts | 1 | 63148062938 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Sfeerverlichting |
S4URA=Ja |
|||||||||
| 13 | Lichtmodule met houder links | 1 | 63147853911 | Vervallen | Shop at ECS Tuning | |||||
| 13 | Lichtmodule met houder rechts | 1 | 63147853912 | Vervallen | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
