Bekledingsstoffen, -kunstleder, -leder for BMW 2500-3.3Li 3.3Li

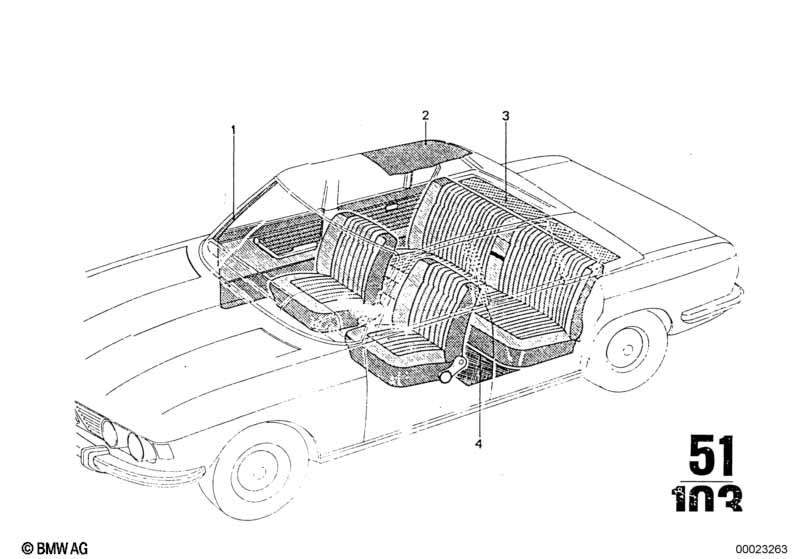

This Bekledingsstoffen, -kunstleder, -leder technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bekledings kunstleer | X | 51927659202 | Vervallen | Shop at ECS Tuning | |||||
| 02 | Hemelbekleding | B=1350MM | X | 51951817302 | $48.76 | Shop at ECS Tuning | ||||
| 03 | Tapijt | X | 51921804126 | Vervallen | Shop at ECS Tuning | |||||
| 03 | Vloerbekleding | HELLGRAU | X | 51921829497 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | MITTELGRAU | X | 51921860553 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | SANDBEIGE | X | 51921860554 | $184.14 | Vervallen | Shop at ECS Tuning | |||
| 03 | Vloerbekleding | MARINEBLAU-GRAU | X | 51921860555 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | SCHWARZ-GRAU | X | 51921860556 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | GRAU | X | 51921862276 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | SANDBEIGE | X | 51921862277 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | MARINEBLAU | X | 51921862278 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | SCHWARZ | X | 51921862279 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Vloerbekleding | BRAUN | X | 51941832865 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Kunstleren bekleding glad | DUNKELBRAUN | X | 51921804127 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Kunstleren bekleding glad | SANDBEIGE | X | 51921824148 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Kunstleren bekleding glad | HELLGRAU | X | 51921829498 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Kunstleren bekleding glad | MARINEBLAU | X | 51927659231 | $64.45 | Vervallen | Shop at ECS Tuning | |||
| 04 | Kunstleren bekleding glad | SCHWARZ | X | 51927659233 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
