Buitenspiegel (S760A) for BMW 3 Series F30 LCI 320dX (2018)

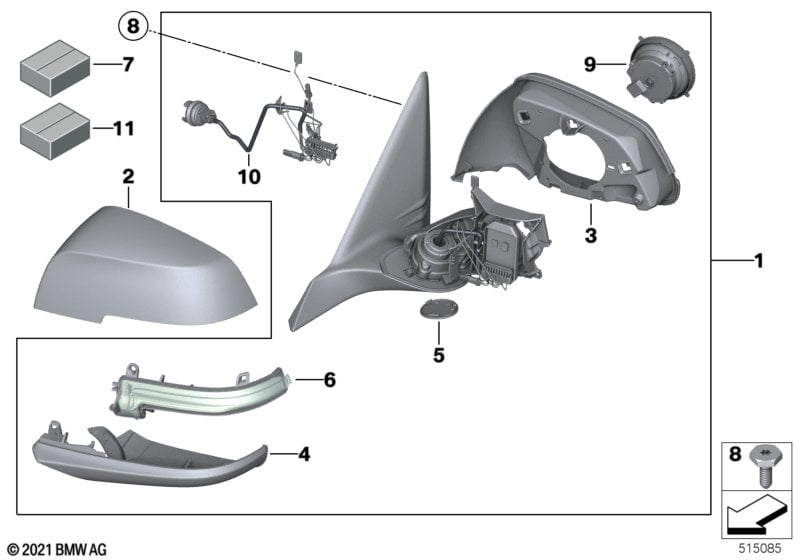

This Buitenspiegel (S760A) technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Hoogglans Shadow line |
S760A=Ja |
||||||||
| Voor voertuigen met Waarsch. rijbaanwijziging en Surround View |
S5AGA=Nee S5DLA=Ja |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 07/2012 | 51167345695 | Shop at ECS Tuning | ||||
| Voor voertuigen met Waarsch. rijbaanwijziging en Surround View |
S5AGA=Ja S5DLA=Ja |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 12/2012 | 51167345705 | Shop at ECS Tuning | ||||
| Voor voertuigen met Waarsch. rijbaanwijziging en Surround View |
S5AGA=Ja S5DLA=Nee |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 07/2012 | 51167345685 | Shop at ECS Tuning | ||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Waarsch. rijbaanwijziging en Surround View |
S430A=Ja S5AGA=Nee S5DLA=Nee |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 07/2012 | 51167345677 | Shop at ECS Tuning | ||||
| 01 | Buitenspiegel verwarmd rechts | SHADOW-LINE | 1 | 03/2016 | 51167459112 | Shop at ECS Tuning | ||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging en Surround View |
S430A=Nee S459A=Nee S5AGA=Nee S5DLA=Nee |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 07/2012 | 51167345657 | Shop at ECS Tuning | ||||
| 01 | Buitenspiegel verwarmd rechts | SHADOW-LINE | 1 | 07/2012 | 51167345658 | Shop at ECS Tuning | ||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging en Surround View |
S430A=Nee S459A=Ja S5AGA=Nee S5DLA=Nee |
|||||||||
| 01 | Buitenspiegel verwarmd links | SHADOW-LINE | 1 | 07/2012 | 51167345665 | Shop at ECS Tuning | ||||
| 01 | Buitenspiegel verwarmd rechts | SHADOW-LINE | 1 | 07/2012 | 51167345666 | Shop at ECS Tuning | ||||
| S3BEA = lakcode U668 S3BGA = lakcode U300 |
||||||||||
| 02 | Afdekkap buitenspiegel grondverf li. | 1 | 51167292745 | +core | Shop at ECS Tuning | |||||
| 02 | Afdekkap buitenspiegel grondverf re. | 1 | 51167292746 | +core | Shop at ECS Tuning | |||||
| Voor voertuigen met Waarsch. rijbaanwijziging |
S5AGA=Nee |
|||||||||
| 03 | Borgring glanszwart links | 1 | 51167284125 | +core | Shop at ECS Tuning | |||||
| 03 | Borgring glanszwart rechts | 1 | 51167284126 | +core | Shop at ECS Tuning | |||||
| Voor voertuigen met Waarsch. rijbaanwijziging |
S5AGA=Ja |
|||||||||
| 03 | Borgring glanszwart links | 1 | 51167302411 | Shop at ECS Tuning | ||||||
| 03 | Borgring glanszwart rechts | 1 | 51167302412 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Surround View |
S5DLA=Nee |
|||||||||
| 04 | Onderstuk huis links | SHADOW-LINE | 1 | 51167284129 | +core | Shop at ECS Tuning | ||||
| 04 | Onderstuk huis rechts | SHADOW-LINE | 1 | 51167284130 | +core | Shop at ECS Tuning | ||||
| Voor voertuigen met Surround View |
S5DLA=Ja |
|||||||||
| 04 | Onderstuk huis links | SHADOW-LINE TOP | 1 | 51167284133 | +core | Shop at ECS Tuning | ||||
| 04 | Onderstuk huis rechts | SHADOW-LINE TOP | 1 | 51167284134 | +core | Shop at ECS Tuning | ||||
| 05 | Abdeckungen Spiegelfuss | 2 | 51167284118 | +core | Shop at ECS Tuning | |||||
| 06 | Extra knipperlicht spiegel links | 1 | 63137280771 | +core | Shop at ECS Tuning | |||||
| 06 | Extra knipperlicht spiegel rechts | 1 | 63137280772 | +core | Shop at ECS Tuning | |||||
| 07 | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| 08 | Torxbout zelftappend | M6X17 | 6 | 07149231823 | Shop at ECS Tuning | |||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Nee S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel links | 1 | 67139447231 | Shop at ECS Tuning | ||||||
| 09 | Aandrijving buitenspiegel links | 1 | 67137292347 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| 09 | Aandrijving buitenspiegel rechts | 1 | 67139447232 | Shop at ECS Tuning | ||||||
| 09 | Aandrijving buitenspiegel rechts | 1 | 67137292348 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Ja S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Ja S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Nee S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Nee S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Ja S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Ja S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Nee S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel | 2 | 67139447234 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Ja S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Ja S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Nee S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Ja S459A=Nee S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Ja S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Ja S5AGA=Nee |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Binnen-/buitenspiegel, aut. dimmend en Stoelverstelling elektrisch met memory en Waarsch. rijbaanwijziging |
S430A=Nee S459A=Nee S5AGA=Ja |
|||||||||
| 09 | Aandrijving buitenspiegel LIN-bus | 2 | 67137266659 | +core | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Set bouten | 1 | 51167284135 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Waarsch. rijbaanwijziging |
S5AGA=Ja |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438145 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Zitting comfort met geheugen en Stoelverstelling elektrisch met memory |
S456A=Ja S459A=Ja |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438141 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438142 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Zitting comfort met geheugen en Stoelverstelling elektrisch met memory |
S456A=Ja S459A=Nee |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438141 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438142 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Zitting comfort met geheugen en Stoelverstelling elektrisch met memory |
S456A=Nee S459A=Ja |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438141 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438142 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Buitenspiegel inklapbaar en Binnen-/buitenspiegel, aut. dimmend en Waarsch. rijbaanwijziging |
S313A=Ja S430A=Ja S5AGA=Nee |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438143 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438144 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Buitenspiegel inklapbaar en Binnen-/buitenspiegel, aut. dimmend en Waarsch. rijbaanwijziging |
S313A=Ja S430A=Nee S5AGA=Nee |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438143 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438144 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Buitenspiegel inklapbaar en Binnen-/buitenspiegel, aut. dimmend en Waarsch. rijbaanwijziging |
S313A=Nee S430A=Ja S5AGA=Nee |
|||||||||
| 10 | Spiegelelektronica links | 1 | 67137438143 | Shop at ECS Tuning | ||||||
| 10 | Spiegelelektronica rechts | 1 | 67137438144 | Shop at ECS Tuning | ||||||
Notities
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
