M bekleding achter for BMW 5 Series E39 530i (2001)

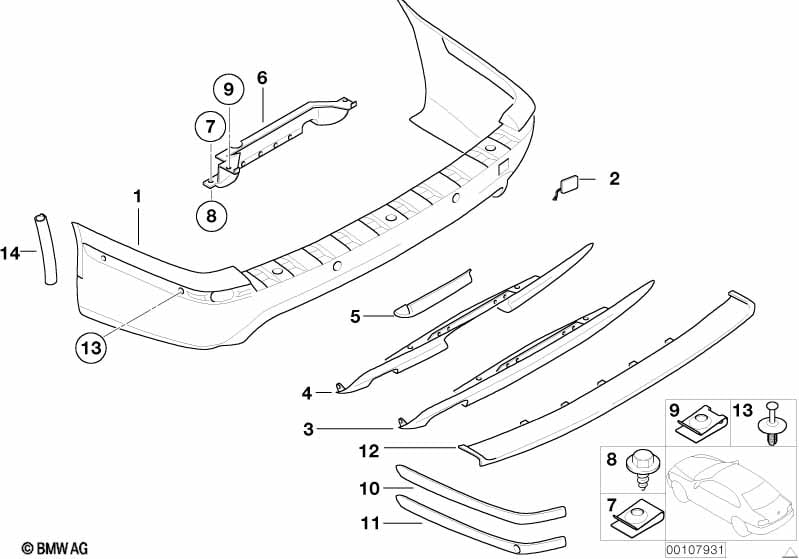

This M bekleding achter technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 530i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumperbekleding in grondlak, achter | M | 1 | 51127902996 | $515.30 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Set aanbouwdelen bumper achter | VALUE PARTS | 1 | 51112294580 | Vervallen | Shop at ECS Tuning | ||||
| 01 | Bumperbekleding in kleur, achter | CODE - UNI/MET. | 1 | 51120026768 | Vervallen, +core | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Set aanbouwdelen bumper achter | VALUE PARTS | 1 | 51112294580 | Vervallen | Shop at ECS Tuning | ||||
| Bestelling met kleur-code | ||||||||||
| Voor voertuigen met Park Distance Control (PDC) |
S508A=Ja |
|||||||||
| 01 | Bumperbekleding in grondlak, achter | M | 1 | 51127894696 | $542.57 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Set aanbouwdelen bumper achter | VALUE PARTS | 1 | 51112294580 | Vervallen | Shop at ECS Tuning | ||||
| 01 | Bumperbekleding in kleur, achter | CODE - UNI/MET. | 1 | 51120022971 | Vervallen, +core | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Set aanbouwdelen bumper achter | VALUE PARTS | 1 | 51112294580 | Vervallen | Shop at ECS Tuning | ||||
| Bestelling met kleur-code | ||||||||||
| 02 | Klep sleep-oog gegrond | 1 | 51128221226 | $11.39 | Shop at ECS Tuning | |||||
| 02 | Klep sleep-oog gelakte | CODE - UNI/MET. | 1 | 51129070502 | Vervallen, +core | Shop at ECS Tuning | ||||
| Bestelling met kleur-code | ||||||||||
| 03 | Inzet onder | M | 1 | 51122695498 | $96.43 | Shop at ECS Tuning | ||||
| Voor voertuigen met Trekhaak, afneembaar |
S235A=Ja |
|||||||||
| 04 | Inzet onder | M | 1 | 51122494800 | $96.43 | Shop at ECS Tuning | ||||
| 05 | Klep trekhaak | M | 1 | 51122695499 | $42.77 | Shop at ECS Tuning | ||||
| 06 | Inzetbevestiging | M | 1 | 51127901487 | $50.63 | Shop at ECS Tuning | ||||
| 07 | Moer | ST4,2-3-ZNS3 | 2 | 07129904221 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Blikschroef | 4,2X16 | 2 | 07119904265 | Shop at ECS Tuning | |||||
| 09 | Moer | ST 4,8-8-ZNS | 2 | 07129904227 | $0.27 | Shop at ECS Tuning | ||||
| 10 | Stotlijst achter links | M | 1 | 51127902991 | $30.37 | Shop at ECS Tuning | ||||
| 10 | Stotlijst achter rechts | M | 1 | 51127902992 | $30.37 | Shop at ECS Tuning | ||||
| Voor voertuigen met Park Distance Control (PDC) |
S508A=Ja |
|||||||||
| 11 | Stotlijst achter links | M | 1 | 51127901491 | $41.30 | Shop at ECS Tuning | ||||
| 11 | Stotlijst achter rechts | M | 1 | 51127901492 | $41.30 | Shop at ECS Tuning | ||||
| 12 | Afdekking midden | 1 | 51128184493 | $45.75 | Shop at ECS Tuning | |||||
| 13 | Splijtnagel | X | 51118174185 | $0.30 | Shop at ECS Tuning | |||||
| 14 | Spleetafdekking | M | 2 | 51127894336 | $10.51 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
