Zonnekleppen for BMW 5 Series E60 535d (2004)

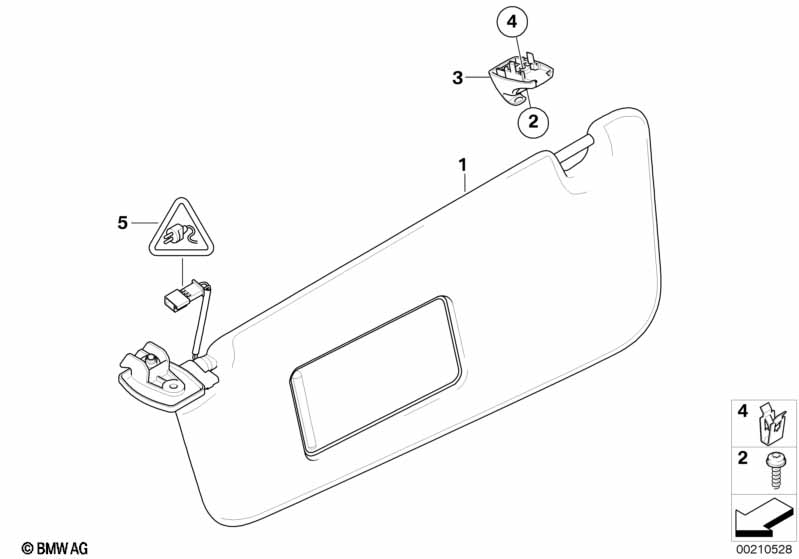

This Zonnekleppen technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 535d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2004.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | USA/CDN: zonneklep met airbag- waarschuwingstekst Rest van de wereld: zonneklep zonder airbag-waarschuwingstekst (waarschuwingstekst wettelijk niet voorgeschreven) |
|||||||||
| Voor voertuigen met Dakhemel antraciet Stofzonneklep |
S775A=Ja |
|||||||||
| 01 | Zonneklep/spiegel verlicht links | ANTHRAZIT | 1 | 51167897605 | Shop at ECS Tuning | |||||
| 01 | Zonneklep/spiegel verlicht rechts | ANTHRAZIT | 1 | 51167897606 | Shop at ECS Tuning | |||||
| Voor voertuigen met Dakhemel antraciet en Hemelbekleding alcantara antraciet Stofzonneklep |
S775A=Nee S776A=Nee |
|||||||||
| 01 | Zonneklep/spiegel verlicht links | ANTHRAZIT | 1 | 51167897605 | Shop at ECS Tuning | |||||
| 01 | Zonneklep/spiegel verlicht rechts | ANTHRAZIT | 1 | 51167897606 | Shop at ECS Tuning | |||||
| Voor voertuigen met Dakhemel antraciet en Hemelbekleding alcantara antraciet en Stof "Edward" of Stof "Fluid" of Stof/leer "React/Oregon" of Stof/leer "Reflex" of Kunstleer of Leer "Dakota" of Leer Walknappa "Skin" of Leder Nappa of Leer "Nasca" Vinylzonneklep |
S775A=Nee S776A=Nee AB=Ja AL=Ja FB=Ja FL=Ja KB=Ja LC=Ja LD=Ja NA=Ja U6=Ja |
|||||||||
| 01 | Zonneklep/spiegel verlicht links | HIMMELGRAU | 1 | 51167066649 | $114.10 | Vervallen | Shop at ECS Tuning | |||
| 01 | Zonneklep/spiegel verlicht rechts | HIMMELGRAU | 1 | 51167066650 | $114.10 | Vervallen | Shop at ECS Tuning | |||
| 01 | Zonneklep/spiegel verlicht links | BEIGE | 1 | 51167069753 | Shop at ECS Tuning | |||||
| 01 | Zonneklep/spiegel verlicht rechts | BEIGE | 1 | 51167069754 | $114.10 | Vervallen | Shop at ECS Tuning | |||
| 02 | Zeskantschroef voor blik | ST4,8X19 | 4 | 07119904183 | $0.17 | Shop at ECS Tuning | ||||
| 03 | Tegenlager zonneklep | SCHWARZ | 2 | 51167896985 | $1.83 | Shop at ECS Tuning | ||||
| Voor voertuigen met Dakhemel antraciet |
S775A=Ja |
|||||||||
| 03 | Tegenlager zonneklep | SCHWARZ | 2 | 51167896985 | $1.83 | Shop at ECS Tuning | ||||
| Voor voertuigen met Dakhemel antraciet en Hemelbekleding alcantara antraciet en Stof/leer "React/Oregon" of Kunstleer of Leer "Dakota" of Leer Walknappa "Skin" of Leer "Nasca" |
S775A=Nee S776A=Nee FB=Ja KB=Ja LC=Ja LD=Ja U6=Ja |
|||||||||
| 03 | Bevestiging zonneklep | BEIGE | 2 | 51167069755 | $1.83 | Shop at ECS Tuning | ||||
| Voor voertuigen met Dakhemel antraciet en Hemelbekleding alcantara antraciet en Stof "Edward" of Stof/leer "React/Oregon" of Kunstleer of Leer "Dakota" of Leer Walknappa "Skin" of Leer "Nasca" |
S775A=Nee S776A=Nee AB=Ja FB=Ja KB=Ja LC=Ja LD=Ja U6=Ja |
|||||||||
| 03 | Bevestiging zonneklep | HIMMELGRAU | 2 | 51167066647 | $1.83 | Shop at ECS Tuning | ||||
| 04 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| 05 | Univers. stopcontacthuis zonder code | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS met kabel | 0,2- 0,5 QMM | 1 | 61130005197 | $1.65 | Shop at ECS Tuning | ||||
| -- | Buscontact MQS met kabel | 0,5-0,75 MM² AG | 1 | 61130056960 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
