Interieursierlijst aluminium for BMW 3 Series E90 330xi (2008)

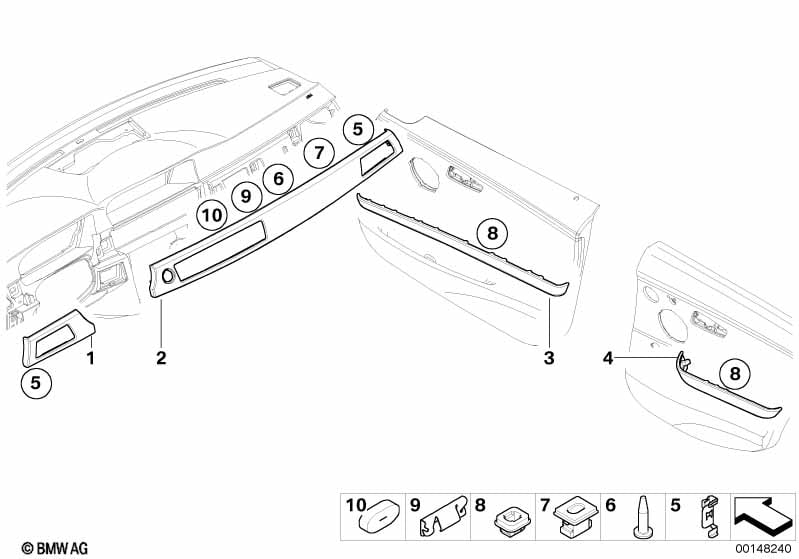

This Interieursierlijst aluminium technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Interieursierlijst alu. glacier-zilver |
S4MGA=Ja |
|||||||||
| 01 | Scherm instrumentpaneel aluminium links | GLACIER SILBER | 1 | 09/2007 | 51459148067 | $73.84 | Shop at ECS Tuning | |||
| Voor voertuigen met Interieurlijsten alu geborsteld fijn |
S4ADA=Ja |
|||||||||
| 01 | Scherm instrumentpaneel aluminium links | 1 | 09/2005 | 51456982455 | $73.84 | Shop at ECS Tuning | ||||
| Voor voertuigen met Interieursierlijst alu. glacier-zilver |
S4MGA=Ja |
|||||||||
| 02 | Scherm instrumentpaneel aluminium rechts | GLACIER SILBER | 1 | 09/2007 | 51459148069 | $162.37 | Shop at ECS Tuning | |||
| Voor voertuigen met Interieurlijsten alu geborsteld fijn |
S4ADA=Ja |
|||||||||
| 02 | Scherm instrumentpaneel aluminium rechts | 1 | 09/2005 | 51456982457 | $124.43 | Vervallen | Shop at ECS Tuning | |||
| Voor voertuigen met Interieursierlijst alu. glacier-zilver |
S4MGA=Ja |
|||||||||
| 03 | Decorstrip alu portier linksvoor | GLACIER SILBER | 1 | 09/2007 | 51419145407 | $103.98 | Shop at ECS Tuning | |||
| 03 | Decorstrip alu portier rechtsvoor | GLACIER SILBER | 1 | 09/2007 | 51419145408 | $103.98 | Shop at ECS Tuning | |||
| Voor voertuigen met Interieurlijsten alu geborsteld fijn |
S4ADA=Ja |
|||||||||
| 03 | Decorstrip alu portier linksvoor | 1 | 09/2005 | 51416982471 | $103.98 | Vervallen | Shop at ECS Tuning | |||
| 03 | Decorstrip alu portier rechtsvoor | 1 | 09/2005 | 51416982472 | $103.98 | Shop at ECS Tuning | ||||
| Voor voertuigen met Interieursierlijst alu. glacier-zilver |
S4MGA=Ja |
|||||||||
| 04 | Decorstrip alu portier linksachter | GLACIER SILBER | 1 | 09/2007 | 51429145409 | $81.07 | Shop at ECS Tuning | |||
| 04 | Decorstrip alu portier rechtsachter | GLACIER SILBER | 1 | 09/2007 | 51429145410 | $81.07 | Shop at ECS Tuning | |||
| Voor voertuigen met Interieurlijsten alu geborsteld fijn |
S4ADA=Ja |
|||||||||
| 04 | Decorstrip alu portier linksachter | 1 | 09/2005 | 51426982473 | $81.07 | Shop at ECS Tuning | ||||
| 04 | Decorstrip alu portier rechtsachter | 1 | 09/2005 | 51426982474 | $81.07 | Shop at ECS Tuning | ||||
| 05 | Klem sierlijst buiten | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 06 | Bout | D=6X12 | 7 | 51416976220 | $1.04 | Shop at ECS Tuning | ||||
| 06 | Pin | D=6X25 | 7 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 07 | Houder | 10 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 08 | Houder | 18 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 09 | Klem | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 10 | Pakking panelen | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
