Deurvenstermechanisme voor for BMW 3 Series F30 LCI 320dX (2018)

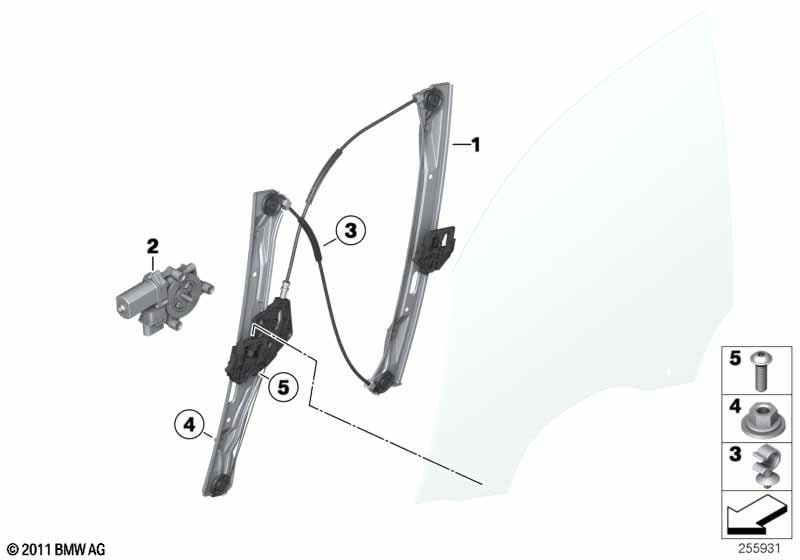

This Deurvenstermechanisme voor technical drawing provides a detailed breakdown of the assembly for the 3 Series F30 LCI 320dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.

Deurvenstermechanisme voor
Nr. Omschrijving Toevoeging Aantal  Van   Tot  Onderdeelnummer Prijs Notities
Voor voertuigen met
Alleen voor China

L8AAA=Ja
01 Raamkruk zonder motor voor links 1 51337281885 Shop at ECS Tuning
01 Raamkruk zonder motor voor rechts 1 51337281886 Shop at ECS Tuning
Voor voertuigen met
Alleen voor China

L8AAA=Nee
01 Raamkruk zonder motor voor links 1 51337281885 Shop at ECS Tuning
01 Raamkruk zonder motor voor rechts 1 51337281886 Shop at ECS Tuning
Voor voertuigen met
Alleen voor China

L8AAA=Ja
02 Aandrijving raamkruk voor links 1 67627406633 Shop at ECS Tuning
02 Aandrijving raamkruk voor rechts 1 67627406634 Shop at ECS Tuning
Voor voertuigen met
Alleen voor China

L8AAA=Nee
02 Aandrijving raamkruk voor links 1 67627406633 Shop at ECS Tuning
02 Aandrijving raamkruk voor rechts 1 67627406634 Shop at ECS Tuning
03 Kabelbevestiging 2 07147247495 Shop at ECS Tuning
04 Zeskantige moer M6 X 07146951627 $0.53 Shop at ECS Tuning
05 Lenskopschroef 6 07146982677 $0.47 Shop at ECS Tuning

See Also

Frequently Asked Questions

What assembly is shown in the BMW 3 Series F30 LCI 320dX Deurvenstermechanisme voor?
This technical diagram illustrates the Deurvenstermechanisme voor within the Voertuig uitrusting group for the 3 Series F30 LCI 320dX produced during 2018. It provides a detailed exploded view of the components, identifying key parts such as the Raamkruk zonder motor voor links (Part #51337281885).
Which models use the hardware listed in this Deurvenstermechanisme voor?
The hardware and components featured in the Deurvenstermechanisme voor are specific to the 3 Series F30 LCI 320dX produced during 2018. These technical specifications ensure that parts like the Raamkruk zonder motor voor links (51337281885) are correctly matched to the vehicle's structural and mechanical requirements.
How do I find specific parts within the Deurvenstermechanisme voor assembly?
Each item in the Deurvenstermechanisme voor corresponds to the numbered list below the illustration. For the 3 Series F30 LCI 320dX, you can identify the Raamkruk zonder motor voor links by locating its position on the schematic, which then links to the official BMW part number 51337281885 for the Voertuig uitrusting section.
