Recaro sportstoel-ligstoelappendages for BMW 3 Series E21 320i (1979)

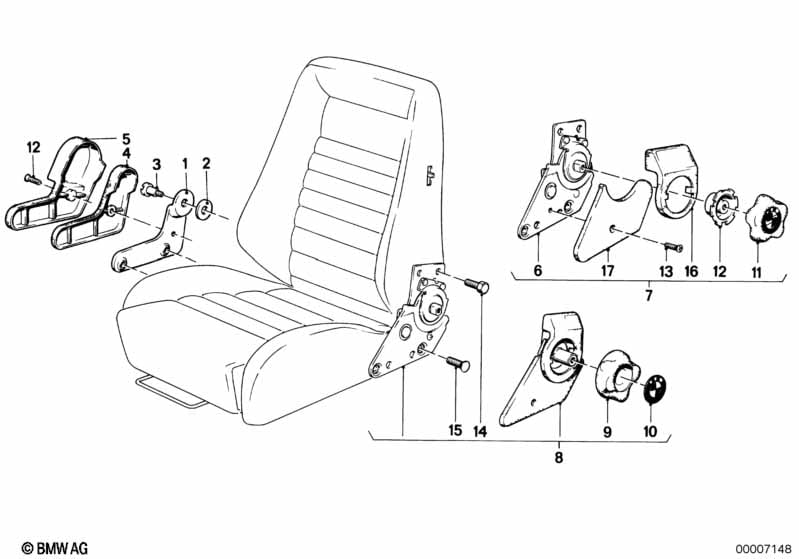

This Recaro sportstoel-ligstoelappendages technical drawing provides a detailed breakdown of the assembly for the 3 Series E21 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1979.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Slaapzitting binnen links | 1 | 52101851341 | $22.10 | Vervallen | Shop at ECS Tuning | ||||
| 01 | Slaapzitting binnen rechts | 1 | 52101851342 | Vervallen | Shop at ECS Tuning | |||||
| 02 | Onderzetterplaat | 2 | 52101850540 | Vervallen | Shop at ECS Tuning | |||||
| 03 | Schroef | 2 | 52101850532 | Vervallen | Shop at ECS Tuning | |||||
| 04 | Afdekking | 1 | 52101864945 | $12.16 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Afdekking | 1 | 52101864946 | Vervallen | Shop at ECS Tuning | |||||
| 05 | Afdekking binnen links | 1 | 52101874639 | $9.99 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Afdekking binnen rechts | 1 | 52101874640 | $9.99 | Vervallen | Shop at ECS Tuning | ||||
| 06 | Slaapzitting buiten links | 1 | 52101850535 | $265.61 | Vervallen | Shop at ECS Tuning | ||||
| 06 | Slaapzitting buiten links | 1 | 52101917345 | $353.77 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Slaapzitting buiten links | 1 | 52101917345 | $353.77 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Slaapzitting buiten rechts | 1 | 52101917346 | $353.77 | Vervallen | Shop at ECS Tuning | ||||
| 09 | Uitvoeringsrad | 2 | 52101901945 | Vervallen | Shop at ECS Tuning | |||||
| 10 | Sierafdekking | 2 | 52101901946 | $4.53 | Vervallen | Shop at ECS Tuning | ||||
| 11 | Uitvoeringsrad | 2 | 52101875826 | $12.47 | Shop at ECS Tuning | |||||
| 12 | Groef uitvoeringsrad | 2 | 52101875827 | Vervallen | Shop at ECS Tuning | |||||
| 13 | Snijschroef | EM5X12 | 4 | 07119918525 | Vervallen | Shop at ECS Tuning | ||||
| 14 | Zeskantige Schroef | M10X20-10.9-PHR | 4 | 07119913830 | $0.43 | Shop at ECS Tuning | ||||
| 15 | Verzinkschroef | 8 | 52101851344 | $3.41 | Vervallen | Shop at ECS Tuning | ||||
| 16 | Afdekking bovenstuk buiten links | 1 | 52101877057 | $21.53 | Vervallen | Shop at ECS Tuning | ||||
| 16 | Afdekking bovenstuk buiten rechts | 1 | 52101877058 | $21.53 | Vervallen | Shop at ECS Tuning | ||||
| 17 | Afdekking benedendeel | 1 | 52101877033 | $9.82 | Vervallen | Shop at ECS Tuning | ||||
| 17 | Afdekking benedendeel | 1 | 52101877034 | $25.43 | Vervallen | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
