BMW accu ongevuld for BMW 5 Series E39 528i (1998)

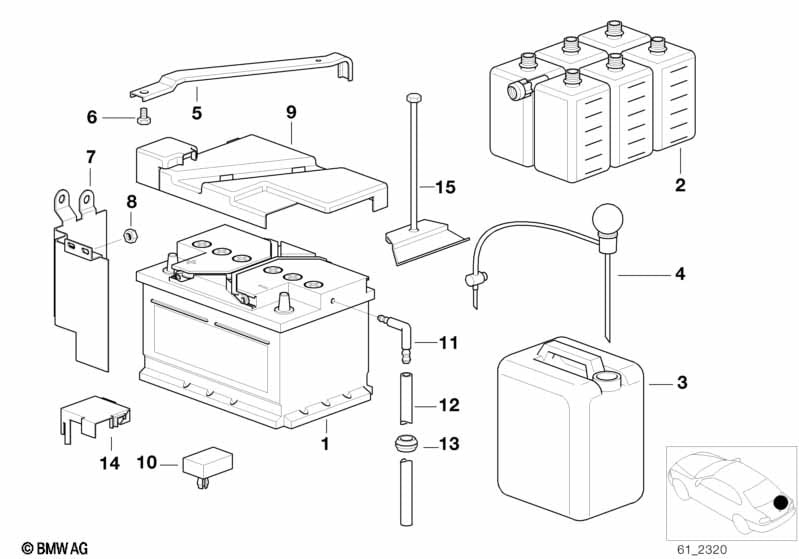

This BMW accu ongevuld technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | BMW accu ongevuld moet vervangen worden door Original BMW accu gevuld |
|||||||||
| 01 | Original BMW accu gevuld | 90AH | 1 | 61217604822 | Shop at ECS Tuning | |||||
| 01 | BMW accu ongevuld | 70AH | 1 | 61218381734 | Vervallen | Shop at ECS Tuning | ||||
| 01 | BMW accu ongevuld | 80AH | 1 | 61218381748 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Batteriezuurpak (6 Flessen) | 70/75/80/85AH | 1 | 61219058697 | Vervallen | Shop at ECS Tuning | ||||
| 02 | Batteriezuurpak (6 Flessen) | 90/95 AH | 1 | 61219067244 | Vervallen | Shop at ECS Tuning | ||||
| 03 | Jerrycan elektrolyt 30 liter | X | 61219069013 | Vervallen | Shop at ECS Tuning | |||||
| 04 | Vultoestel v batteriezuur | X | 61219069014 | Vervallen | Shop at ECS Tuning | |||||
| 05 | Accubefestiging | 1 | 07/1996 | 61218368212 | $14.20 | Shop at ECS Tuning | ||||
| 06 | Zeskantige Schroef | M8X16-10.9-PHR | 1 | 07119913612 | $0.62 | Shop at ECS Tuning | ||||
| 07 | Stootscherm batterij positieve pool | 1 | 61218361707 | $4.23 | Shop at ECS Tuning | |||||
| 08 | Kunststofmoer bout grove schroefdraad | M6 | 3 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
| 11 | Aansluitkniestuk | 1 | 61211377835 | $0.52 | Shop at ECS Tuning | |||||
| 12 | Slangleiding per meter | X | 61211377745 | $1.97 | Shop at ECS Tuning | |||||
| 13 | Tule | 10,5MM | 1 | 61218050550 | $0.35 | Shop at ECS Tuning | ||||
| 14 | Afdekking batterij positieve pool | 1 | 09/1997 | 61218375653 | $3.12 | Shop at ECS Tuning | ||||
| 15 | Accubefestiging | 1 | 07/1996 | 61217631587 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Bevestigingsschroef | 190MM | 1 | 07/1996 | 61217577620 | $6.95 | Shop at ECS Tuning | |||
| -- | Axiale zekering | 15X5,7MM | 1 | 07/1996 | 07149158226 | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
