Reservoir ruitensproeierreining for BMW 5 Series E39 528i (1998)

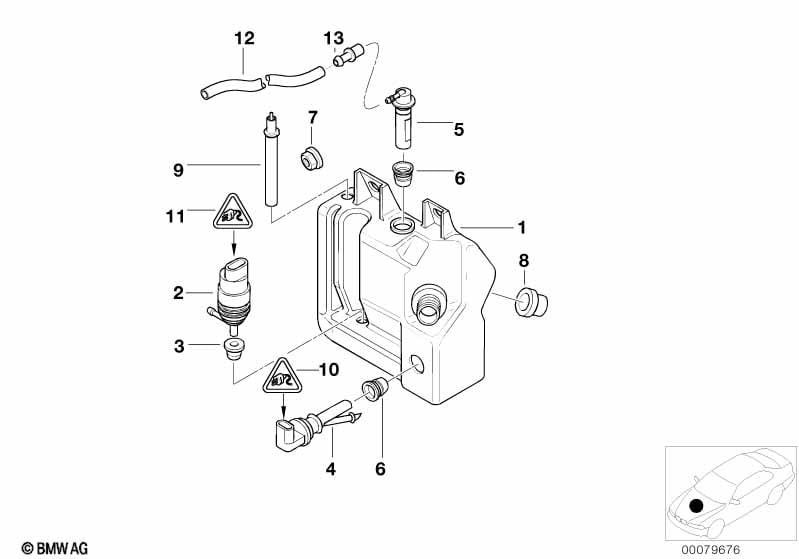

This Reservoir ruitensproeierreining technical drawing provides a detailed breakdown of the assembly for the 5 Series E39 528i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1998.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Reservoir met niveauinstrument | 1 | 05/1998 | 10/2000 | 61607038432 | $33.60 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Vulbuis | 1 | 05/1998 | 10/2000 | 61607038436 | $43.40 | Shop at ECS Tuning | |||
| Voor voertuigen met Alleen voor oosteuropa |
L816A=Ja |
|||||||||
| 01 | Reservoir met niveauinstrument | 1 | 10/2000 | 61677044899 | $52.60 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Vulbuis | 1 | 10/2000 | 61607038436 | $43.40 | Shop at ECS Tuning | ||||
| 02 | Sproeierpomp achter | 1 | 09/1997 | 67128362154 | $42.75 | Shop at ECS Tuning | ||||
| 03 | Zeef v waspomp | 1 | 09/1997 | 61667006063 | $2.62 | Shop at ECS Tuning | ||||
| 04 | Niveauschakelaar reservoir ruitensproei | 1 | 61318360459 | $32.46 | Shop at ECS Tuning | |||||
| 05 | Onluchtingsventiel | 1 | 06/1998 | 61608255245 | $2.43 | Shop at ECS Tuning | ||||
| 06 | Rubbermof | 2 | 61311369343 | $1.93 | Shop at ECS Tuning | |||||
| 07 | Kunststofmoer bout grove schroefdraad | 2 | 16131183133 | $0.37 | Shop at ECS Tuning | |||||

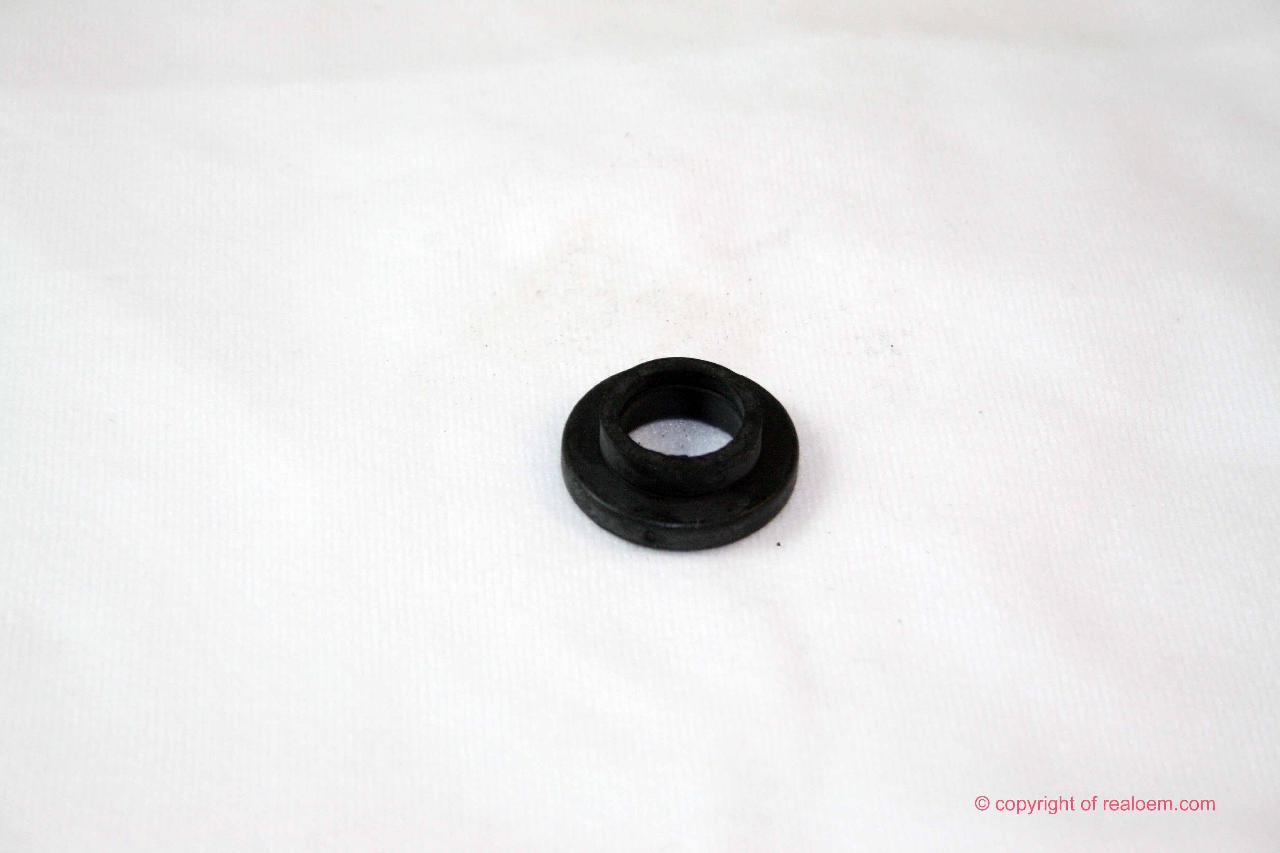

| 08 | Tule | 1 | 61668360138 | $0.75 | Shop at ECS Tuning | |||||
| 10 | Rep.-set bushuis | 2 POL. | 1 | 61132359999 | Shop at ECS Tuning | |||||
| 11 | Univers. stopcontacthuis zonder code | 2 POL. | 1 | 09/1997 | 61138364520 | $1.52 | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Ronde steker 2.5 ELA met kabel | 0,75-1,0 MM² | X | 09/1997 | 61130007569 | $2.27 | Shop at ECS Tuning | |||
| -- | Ronde steker 2.5 ELA met kabel | 1,0-2,5 MM² | X | 09/1997 | 61130007571 | $2.65 | Shop at ECS Tuning | |||
| 12 | Slangleiding | X | 61668362762 | $2.92 | Shop at ECS Tuning | |||||
| 13 | Bus slangleiding | 1 | 61688248026 | $1.07 | Shop at ECS Tuning | |||||
