Ruitewis-installatie for BMW 2500-3.3Li 3.3Li

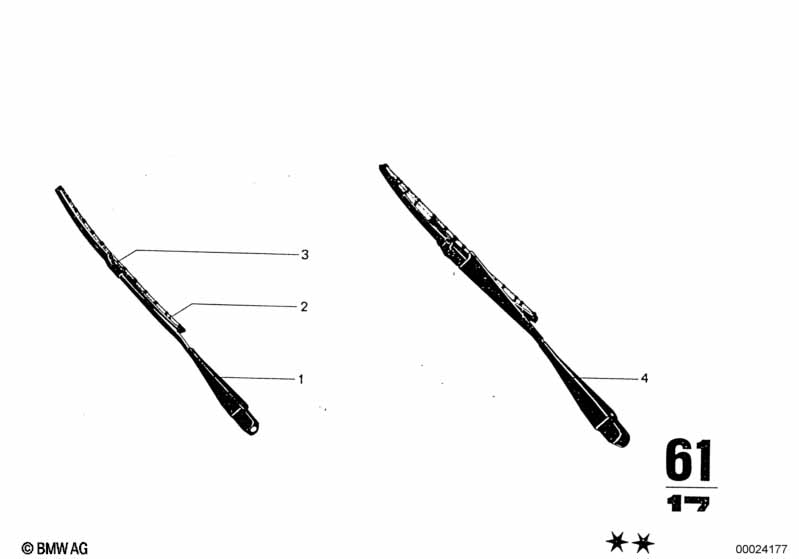

This Ruitewis-installatie technical drawing provides a detailed breakdown of the assembly for the 2500-3.3Li 3.3Li. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Ruitenwisserarm rechts | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611357260 | $132.11 | Vervallen | Shop at ECS Tuning | |
| 01 | Ruitenwisserarm | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611359120 | $132.11 | Shop at ECS Tuning | ||
| slechts in combinatie met | ||||||||||
| -- | Veerring | 8,4X15-ZNS3 | 1 | 09/1973 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| -- | Zeskantige moer | M8-8-ZNNIV SI | 1 | 09/1973 | 02/1977 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
| 02 | Wisserblad | BOSCH 380 BLACK | 2 | 09/1973 | 02/1977 | 61611357254 | $22.79 | Vervallen | Shop at ECS Tuning | |
| 03 | Ruitenwisserrub. | 15" | 2 | 09/1973 | 02/1977 | 61611352734 | $19.63 | Shop at ECS Tuning | ||
| 04 | Ruitenwisserarm m.windbeschermer links | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611357259 | $49.66 | Vervallen | Shop at ECS Tuning | |
| 04 | Ruitenwisserarm | BOSCH BLACK | 1 | 09/1973 | 02/1977 | 61611359120 | $132.11 | Shop at ECS Tuning | ||
| slechts in combinatie met | ||||||||||
| -- | Veerring | 8,4X15-ZNS3 | 1 | 09/1973 | 02/1977 | 07119904115 | $0.09 | Shop at ECS Tuning | ||
| -- | Zeskantige moer | M8-8-ZNNIV SI | 1 | 09/1973 | 02/1977 | 07119905515 | $0.16 | Shop at ECS Tuning | ||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
