Batterijkabel/massakabel for BMW 5 Series G30 520dX (2020)

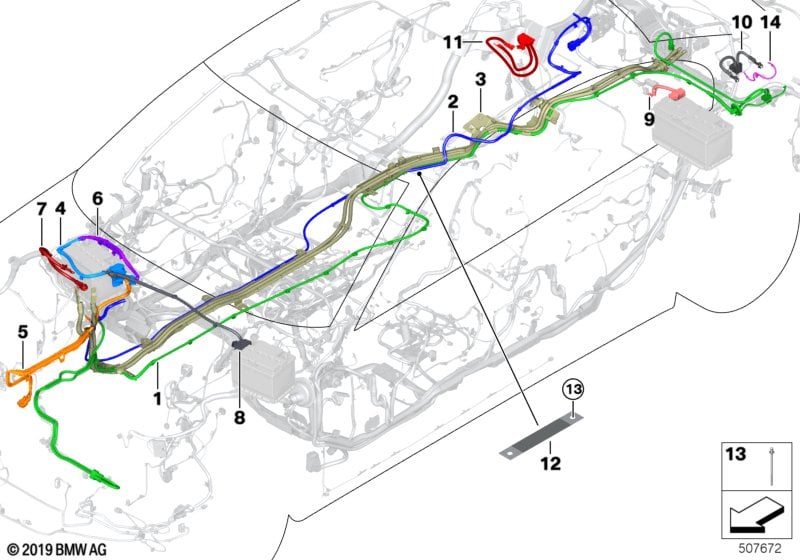

This Batterijkabel/massakabel technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Integrale actieve besturing en M sportonderstel Professional |
S2VHA=Ja S2VWA=Ja |
|||||||||
| 01 | Kabelboom EAS onder de vloer | 1 | 61126839205 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Dynamic Drive en Onderstelaanpassing "Adaptive Drive" en Executive Drive Pro en M sportonderstel Professional |
S229A=Ja S2VAA=Ja S2VSA=Ja S2VWA=Ja |
|||||||||
| 02 | Kabelboom emARS onder de vloer | 1 | 61126807327 | Shop at ECS Tuning | ||||||
| 03 | Accukabel plus ondervloer | 1 | 61126807324 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Voorbereiding hulpdienstvoertuig en Extra energievoorziening |
S138A=Ja S146A=Ja |
|||||||||
| 06 | Batterijkabel (-) 2e batterij | 1 | 61128386674 | $27.38 | Shop at ECS Tuning | |||||
| 08 | Batterijkabel 2e batterij | 1 | 61128089806 | Shop at ECS Tuning | ||||||
| slechts passend bij Accu 90AH |
||||||||||
| 09 | Batterijkabel pos. | 1 | 61129350065 | Shop at ECS Tuning | ||||||
| slechts passend bij Accu 105AH |
||||||||||
| 09 | Batterijkabel pos. | 1 | 61129391187 | Shop at ECS Tuning | ||||||
| 10 | Bedradingsset scheidingselement accu | 1 | 61129366323 | Shop at ECS Tuning | ||||||
| 12 | Aardingsband | L= 92MM | 4 | 61127479747 | Shop at ECS Tuning | |||||
| 12 | Aardingsband | L= 118MM | 4 | 61127213377 | Shop at ECS Tuning | |||||
| 13 | Popnagel platkop | 5,0X9,5 | 8 | 07147444158 | Shop at ECS Tuning | |||||
