Hoogvoltage accueenheid HV-leiding for BMW 5 Series G30 530e (2017)

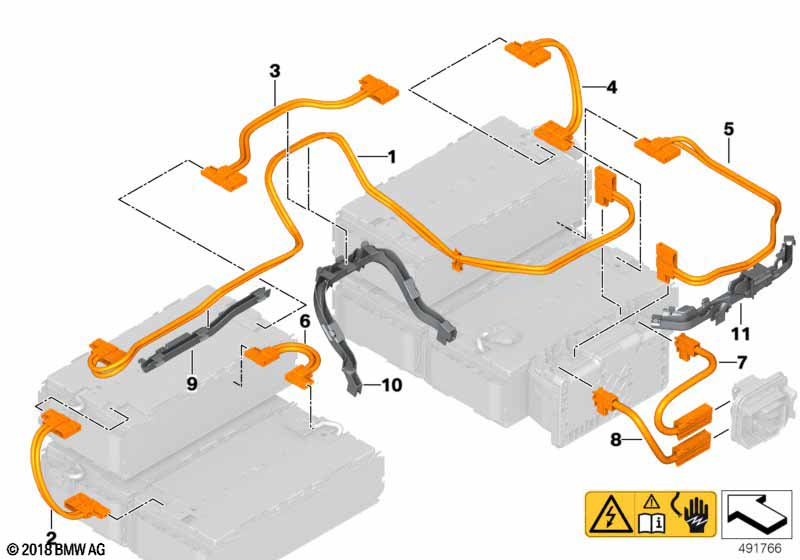

This Hoogvoltage accueenheid HV-leiding technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 530e. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2017.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | HS-accu kabel min | 1 | 61278621016 | Shop at ECS Tuning | ||||||
| 02 | Cellenblokverbinder | 1 | 61278621017 | Shop at ECS Tuning | ||||||
| 03 | Cellenblokverbinder | 1 | 61278621018 | Shop at ECS Tuning | ||||||
| 04 | Cellenblokverbinder | 1 | 61278621019 | Shop at ECS Tuning | ||||||
| 05 | HS-accu kabel plus | 1 | 61278621020 | Shop at ECS Tuning | ||||||
| 06 | Cellenblokverbinder | 2 | 61278618444 | Shop at ECS Tuning | ||||||
| 07 | HS-accu kabel plus | 1 | 61278650791 | Shop at ECS Tuning | ||||||
| 08 | HS-accu kabel min | 1 | 61278650793 | Shop at ECS Tuning | ||||||
| 09 | Kabelgoot | 1 | 61278632912 | Shop at ECS Tuning | ||||||
| 10 | Kabelgoot | 1 | 61278632913 | Shop at ECS Tuning | ||||||
| 11 | Kabelgoot | 1 | 61278632917 | Shop at ECS Tuning |
