Accu aanbouwdelen for BMW 5 Series G30 520dX (2020)

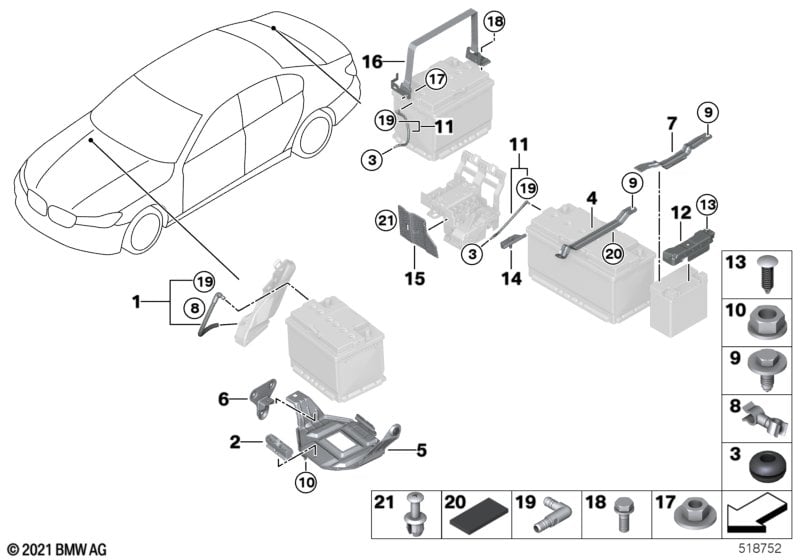

This Accu aanbouwdelen technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Onderstelaanpassing "Adaptive Drive" en Parkeerverwarming |
S2VAA=Ja S536A=Ja |
|||||||||
| 01 | Ontgassingsslang accu | 1 | 61219311085 | Shop at ECS Tuning | ||||||
| 02 | Accuklemrail | 1 | 61219312294 | Shop at ECS Tuning | ||||||
| 03 | Tule | 12MM | 1 | 61217591102 | Shop at ECS Tuning | |||||
| Voor voertuigen met Alleen voor China en Noodwiel en Neerklapbare achterbank |
L8AAA=Ja S300A=Ja S465A=Ja |
|||||||||
| 04 | Beugel accu | 1 | 61218704689 | Shop at ECS Tuning | ||||||
| 05 | Accudrager extra accu | 1 | 61219311079 | Shop at ECS Tuning | ||||||
| 06 | Steun accudrager | 1 | 61219311086 | Shop at ECS Tuning | ||||||
| 07 | Beugel accu | 1 | 61219311928 | Shop at ECS Tuning | ||||||
| 08 | Bevestiging | 1 | 61131365675 | $1.13 | Shop at ECS Tuning | |||||
| 09 | Gecombineerde zeskantbout | 2 | 61218704702 | Shop at ECS Tuning | ||||||
| 10 | Zeskantige moer | AM8-8-ZNS3 | 1 | 07129904872 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Ontgassingsslang accu | 1 | 61219311080 | Shop at ECS Tuning | ||||||
| 14 | Accuklemrail | 1 | 61216832664 | Shop at ECS Tuning | ||||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series G30 520dX Accu aanbouwdelen?
- This technical diagram illustrates the Accu aanbouwdelen within the Voertuig electriciteit group for the 5 Series G30 520dX produced during 2020. It provides a detailed exploded view of the components, identifying key parts such as the Ontgassingsslang accu (Part #61219311085).
- Which models use the hardware listed in this Accu aanbouwdelen?
- The hardware and components featured in the Accu aanbouwdelen are specific to the 5 Series G30 520dX produced during 2020. These technical specifications ensure that parts like the Ontgassingsslang accu (61219311085) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Accu aanbouwdelen assembly?
- Each item in the Accu aanbouwdelen corresponds to the numbered list below the illustration. For the 5 Series G30 520dX, you can identify the Ontgassingsslang accu by locating its position on the schematic, which then links to the official BMW part number 61219311085 for the Voertuig electriciteit section.
