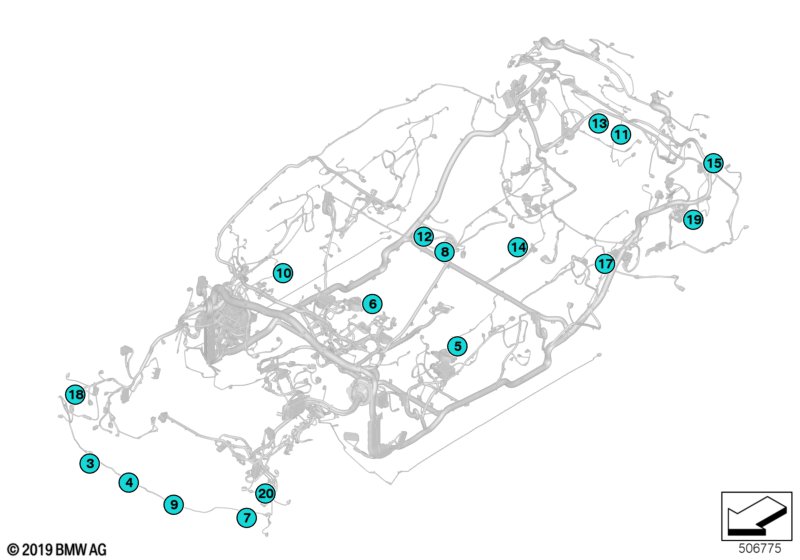

Stekkerverbinding van B228*1B->B349*1B for BMW 3 Series G21 Touring 330i (2018)
This Stekkerverbinding van B228*1B->B349*1B technical drawing provides a detailed breakdown of the assembly for the 3 Series G21 Touring 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2018.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Opgelet: De met "alleen in combinatie- met" aangegeven onderdelen hoeven niet gedwongen te worden besteld, maar dienen ter informatie en kunnen indien nodig mee worden besteld. Alle onderstaand genoemde stekker-/ bushuizen dienen als montage-overzicht bij het identificatieteken. De exacte inbouwplaats voor het betreffende voertuig moet in het systeem "AIR" worden opgezocht. |
|||||||||
| B230*1B - Niveausensor passief reservoir | ||||||||||
| 01 | Rep.-set bushuis | 3 POL. | 1 | 61132359997 | Shop at ECS Tuning | |||||
| B28*1B - Airbagsensor voorportier rechts | ||||||||||
| 10 | Univers. stopcontacthuis zonder code | 2 POL. | 1 | 12527543313 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Buscontact MCON 1,2 met kabel | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
| B3*1B - Microfoon1 | ||||||||||
| 12 | Univers. stopcontacthuis zonder code | 3 POL. | 1 | 61138377072 | $1.37 | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS met kabel | 0,2-0,35 MM² AG | 3 | 61130056962 | Shop at ECS Tuning | |||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 3 | 61138727251 | Shop at ECS Tuning | |||||
| B34*1B - Lane Change Warning rechtsvoor | ||||||||||
| 18 | Stopcontacthuis | 16 POL. | 1 | 12527622806 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Blinde tule | MQS Ø=3,6 | 3 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 13 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Buscontact MCON 1,2 met kabel | 0,25-0,35MM² AG | 13 | 12520056954 | Shop at ECS Tuning | |||||
| B349*1B - Druksensor linksvoor | ||||||||||
| 20 | Bushuis ongecodeerd | 2 POL. | 1 | 12527615488 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Buscontact MCON 1,2 met kabel | 0,25-0,35MM² AG | 2 | 12520056954 | Shop at ECS Tuning | |||||
