Schakelaar stuurwiel basis for BMW 5 Series G30 520dX (2020)

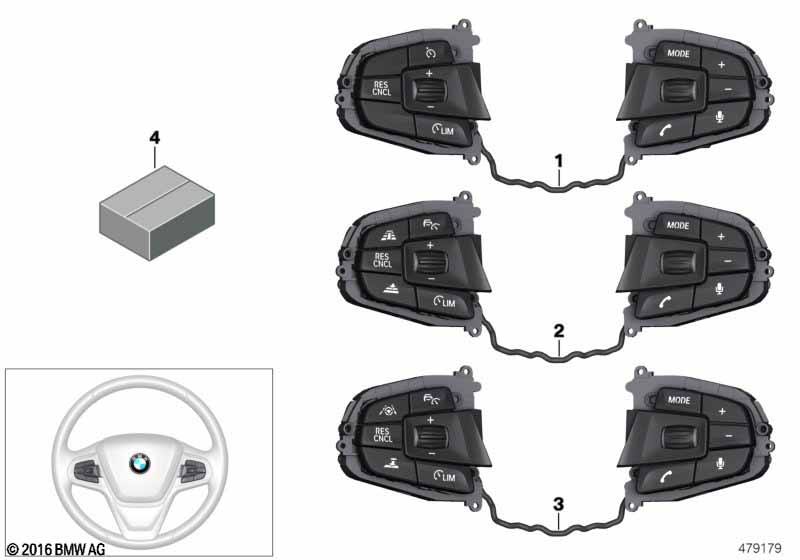

This Schakelaar stuurwiel basis technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Voor voertuigen met Individ.uitr.stuurwiel leer fijne nerf en Galvan.opp.vl.behand. bedien.elementen en M leerstuurwiel |
S2XMA=Nee S4U0A=Nee S710A=Nee |
||||||||
| Voor voertuigen met Driving Assistant Plus en Actieve snelh.regeling+Stop&Go functie |
S5ATA=Nee S5DFA=Nee |
|||||||||
| 01 | Schakelaar multifunctioneel stuurwiel | 1 | 07/2019 | 61316819913 | Shop at ECS Tuning | |||||
| Voor voertuigen met Actieve snelh.regeling+Stop&Go functie |
S5DFA=Ja |
|||||||||
| 02 | Schakelaar multifunctioneel stuurwiel | 1 | 07/2019 | 61316819915 | Shop at ECS Tuning | |||||
| Voor voertuigen met Driving Assistant Plus |
S5ATA=Ja |
|||||||||
| 03 | Schakelaar multifunctioneel stuurwiel | 1 | 07/2019 | 61316819917 | Shop at ECS Tuning | |||||
| 04 | Set bouten | 1 | 07/2019 | 32306884696 | Shop at ECS Tuning | |||||
