Stekkerverbinding van E5*1B-->E549*1B for BMW 7 Series G12 LCI 730LdX (2020)

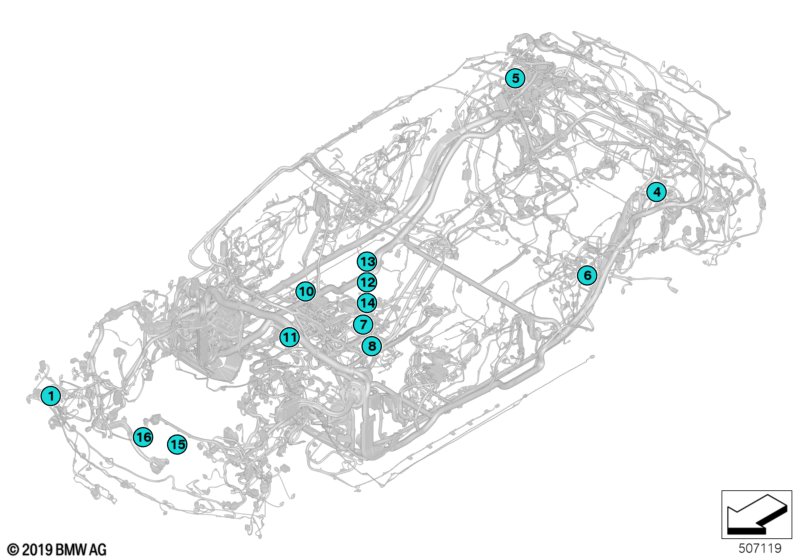

This Stekkerverbinding van E5*1B-->E549*1B technical drawing provides a detailed breakdown of the assembly for the 7 Series G12 LCI 730LdX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Opgelet: De met "alleen in combinatie- met" aangegeven onderdelen hoeven niet gedwongen te worden besteld, maar dienen ter informatie en kunnen indien nodig mee worden besteld. Alle onderstaand genoemde stekker-/ bushuizen dienen als montage-overzicht bij het identificatieteken. De exacte inbouwplaats voor het betreffende voertuig moet in het systeem "AIR" worden opgezocht. |
|||||||||
| E5*1B - Koplamp rechts | ||||||||||
| 01 | Stopcontacthuis | 6 POL. KOD A | 1 | 07/2022 | 61136992166 | Vervallen | Shop at ECS Tuning | |||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS ELA met kabel | 0,2-0,35 MM² AG | 2 | 07/2022 | 61130085034 | Shop at ECS Tuning | ||||
| -- | Blinde tule | MQS Ø=3,6 | 2 | 07/2022 | 61138366249 | $0.20 | Shop at ECS Tuning | |||
| -- | Draadverbinder met krimpkous | 1,5-2,5MM² | 2 | 07/2022 | 61138727250 | Shop at ECS Tuning | ||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 2 | 07/2022 | 61138727251 | Shop at ECS Tuning | ||||
| -- | Buscontact MCON 2,8 ELA met kabel | 1,5-2,5MM² AG | 2 | 07/2022 | 12520070573 | Shop at ECS Tuning | ||||
| 01 | Bushuis ongecodeerd | 6 POL. | 1 | 61136992168 | Shop at ECS Tuning | |||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact MQS ELA met kabel | 0,2-0,35 MM² AG | 2 | 61130085034 | Shop at ECS Tuning | |||||
| -- | Blinde tule | MQS Ø=3,6 | 2 | 61138366249 | $0.20 | Shop at ECS Tuning | ||||
| -- | Draadverbinder met krimpkous | 1,5-2,5MM² | 2 | 61138727250 | Shop at ECS Tuning | |||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 2 | 61138727251 | Shop at ECS Tuning | |||||
| -- | Buscontact MCON 2,8 ELA met kabel | 1,5-2,5MM² AG | 2 | 12520070573 | Shop at ECS Tuning | |||||
| E51*1B - Portieropbergvakverlichting bestuurderszijde achter |
||||||||||
| 06 | Stopcontacthuis | 4 POL. KOD. D | 1 | 61139362831 | NoS | Shop at ECS Tuning | ||||
| slechts in combinatie met | ||||||||||
| -- | Buscontact NanoMQS met bedrading | 0,22-0,35MM² AG | 4 | 61130056943 | Shop at ECS Tuning | |||||
| -- | Draadverbinder met krimpkous | 0,17-0,5MM² | 4 | 61138727251 | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- NoS = No Stock (Deel centraal niet voor voorraad)
