Kombinatie van instrumenten-onderdelen for BMW R45-R65LS..78-85 R45

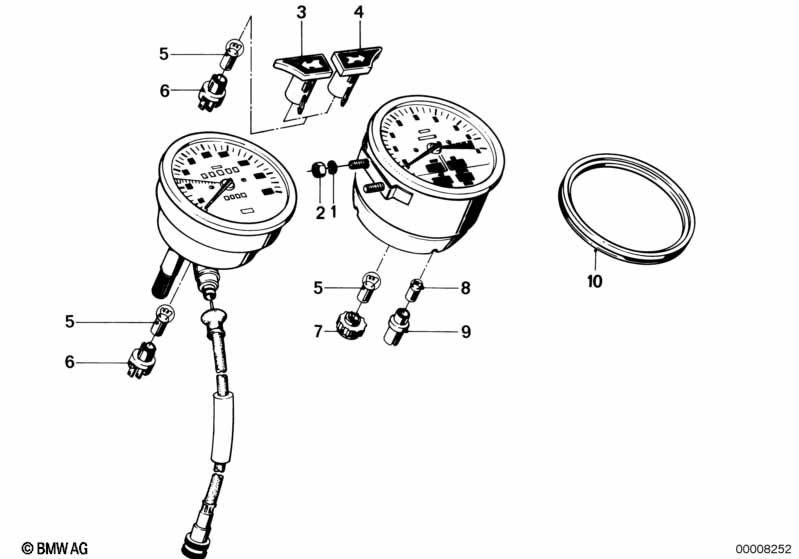

This Kombinatie van instrumenten-onderdelen technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Veerring | B5 | 4 | 07119932098 | $0.38 | Shop at ECS Tuning | ||||
| 02 | Zeskantige moer | M8-8-ZNS3 | 4 | 07/1985 | 07119904032 | $0.16 | Shop at ECS Tuning | |||
| 02 | Zeskantige moer | M8-8-ZNNIV SI | 4 | 07119905515 | $0.16 | Shop at ECS Tuning | ||||
| 03 | Verlichting | LINKS | 1 | 62141243583 | $12.45 | Shop at ECS Tuning | ||||
| 04 | Verlichting | RECHTS | 1 | 62141243584 | $12.45 | Shop at ECS Tuning | ||||
| 06 | Fitting | 3 | 62121244626 | $12.77 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Fitting | 5 | 62137728087 | Vervallen | Shop at ECS Tuning | |||||
| 08 | Gloeilamp | 12V 1,2W | 2 | 09/1980 | 63217167000 | $3.00 | Shop at ECS Tuning | |||
| 09 | Fitting | 2 | 09/1980 | 62131243519 | $5.19 | Shop at ECS Tuning |
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
