Signaallicht - ULO for BMW R45-R65LS..78-85 R45

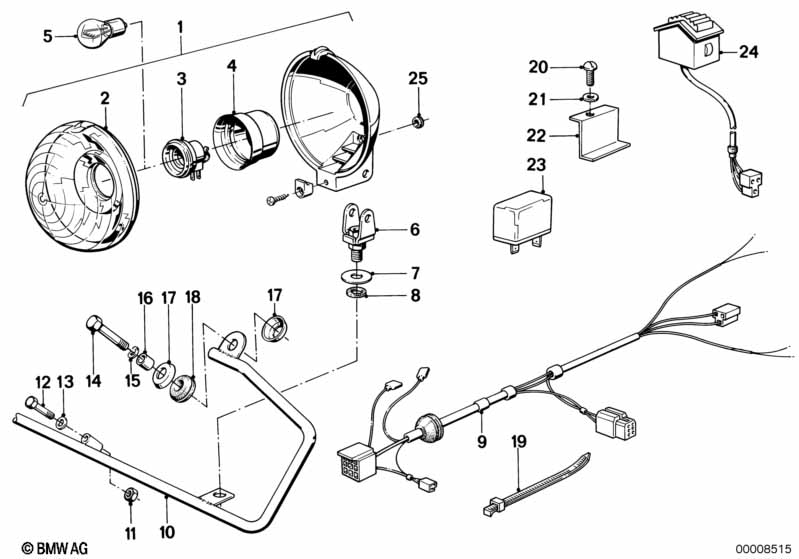

This Signaallicht - ULO technical drawing provides a detailed breakdown of the assembly for the R45-R65LS..78-85 R45. It includes part names, part numbers and all associated mounting hardware.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Voor voertuigen met Overheid vaartuig |
=Ja |
|||||||||
| 01 | Nummerbordlicht blauw | ULO | 2 | 63171244342 | Vervallen, +core | Shop at ECS Tuning | ||||
| 01 | Nummerbordlicht rood | ULO | 2 | 63171244343 | Vervallen, +core | Shop at ECS Tuning | ||||
| 02 | Glas blauw | ULO | 2 | 63171244345 | Vervallen, +core | Shop at ECS Tuning | ||||
| 02 | Glas rood | ULO | 2 | 63171244346 | $97.79 | Vervallen, +core | Shop at ECS Tuning | |||
| 03 | Fitting | ULO | 2 | 63171244348 | $20.81 | Vervallen | Shop at ECS Tuning | |||
| 04 | Afsluitkapje | ULO | 2 | 63171244349 | Vervallen | Shop at ECS Tuning | ||||
| 05 | Gloeilamp | 12V 35W | 2 | 07119978055 | $10.04 | Vervallen | Shop at ECS Tuning | |||
| 06 | Beugel | ULO | 2 | 63171244351 | Vervallen | Shop at ECS Tuning | ||||
| 07 | Afdichtring | 12-200 HV-ZNS3 | 2 | 07119906063 | Shop at ECS Tuning | |||||
| 09 | Kabelset nummerbordlicht | ULO | 1 | 61121244354 | Vervallen | Shop at ECS Tuning | ||||
| 09 | Kabelset opeenvolg.v.ton.numme.bor.lic. | ULO | 1 | 61121244358 | Vervallen, +core | Shop at ECS Tuning | ||||
| 09 | Kabelset sirene/polisielicht | ULO | 1 | 61121244370 | $74.49 | Vervallen | Shop at ECS Tuning | |||
| 10 | Beugel | 1 | 63171237600 | $98.75 | Shop at ECS Tuning | |||||
| 11 | Zelfborgende zeskantige moer | M6-10 ZN | 2 | 07/1985 | 07129922705 | $0.27 | Vervallen | Shop at ECS Tuning | ||
| 11 | Zelfborgende zeskantige moer | M6 ZNNIV SI | 2 | 07147575163 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Zeskantige Schroef | M6X25 | 2 | 07119913589 | $0.62 | Shop at ECS Tuning | ||||
| 13 | Onderzetterplaat | A6,4-ZNNIV SI | 4 | 07119904202 | Shop at ECS Tuning | |||||
| 14 | Zeskantige Schroef | M8X28-ZN | 4 | 07119913659 | $0.47 | Vervallen | Shop at ECS Tuning | |||
| 15 | Veerring | 8,4X15-ZNS3 | 2 | 07119904115 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Bus | 2 | 31421236243 | $1.33 | Shop at ECS Tuning | |||||
| 17 | Kap | 4 | 31421232243 | $1.96 | Shop at ECS Tuning | |||||
| 18 | Rubber tule | 2 | 31421236242 | $2.80 | Shop at ECS Tuning | |||||
| 19 | Kabelband | L=200MM/B=3,6MM | X | 61131367599 | $0.43 | Shop at ECS Tuning | ||||
| 19 | Kabelband | L=292MM/B=4,8MM | 1 | 61131377134 | $0.77 | Shop at ECS Tuning | ||||
| 20 | Verz.bolkopschroef | ST4,8X13 | 3 | 07119907786 | $0.11 | Shop at ECS Tuning | ||||
| 21 | Afdichtring | 10X5,3X1-200 HV | 1 | 07119904206 | Shop at ECS Tuning | |||||
| 21 | Onderzetterplaat | 5.3-140 HV-ZNS | 1 | 07119936439 | $0.40 | Shop at ECS Tuning | ||||
| 22 | Anker | 1 | 61131242756 | Vervallen | Shop at ECS Tuning | |||||
| 23 | Relais signaal | 1 | 63171352854 | $44.89 | Vervallen, +core | Shop at ECS Tuning | ||||
| 24 | Extra schakelaar | 2 | 61311243454 | $46.35 | Vervallen, +core | Shop at ECS Tuning | ||||
| 25 | Tule | 2 | 61131244360 | $4.60 | Vervallen | Shop at ECS Tuning | ||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
- +core = mogelijkheid tot de terugkeer van het oude onderdeel
