Interieurverlichting dashboard/console for BMW 5 Series G30 520d (2019)

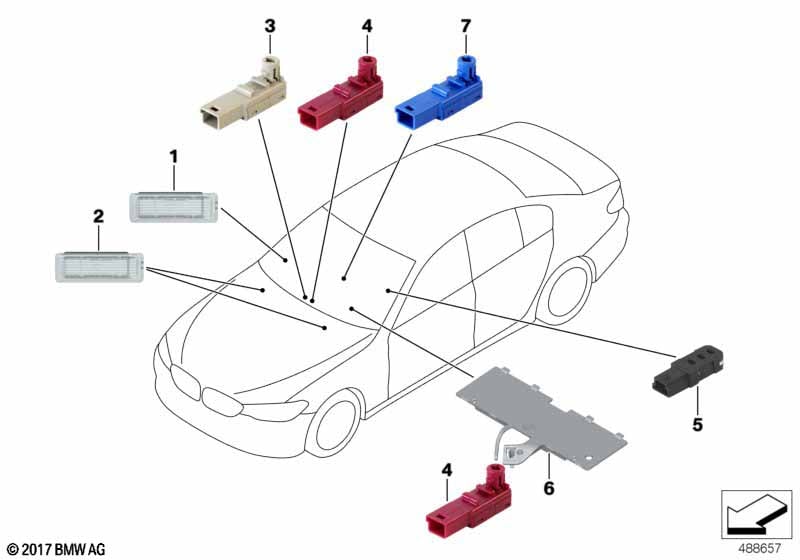

This Interieurverlichting dashboard/console technical drawing provides a detailed breakdown of the assembly for the 5 Series G30 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2019.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| HANDSCHOENENKASTJE | ||||||||||
| 01 | LED voor binnenverlichting | HIGH POWER | 1 | 63319397922 | Shop at ECS Tuning | |||||
| Voetruimte voor | ||||||||||
| 02 | LED voor binnenverlichting | HIGH POWER | 2 | 63319397922 | Shop at ECS Tuning | |||||
| Voor voertuigen met Sfeerverlichting Beenruimte voor/achter |
S4URA=Ja |
|||||||||
| 02 | LED voor binnenverlichting | 2 | 63319458174 | Shop at ECS Tuning | ||||||
| Voor voertuigen met Sfeerverlichting |
S4URA=Ja |
|||||||||
| 03 | LED-module | GRAU | 3 | 63319891269 | Shop at ECS Tuning | |||||
| 04 | LED-module | VIOLETT | 2 | 63319891270 | Shop at ECS Tuning | |||||
| Voor voertuigen met Sfeerverlichting MIDDENCONSOLE |
S4URA=Ja |
|||||||||
| 05 | LED-module | SCHWARZ | 1 | 63319475836 | Shop at ECS Tuning | |||||
| Voor voertuigen met Sfeerverlichting Middenconsole opbergvak |
S4URA=Ja |
|||||||||
| 06 | Lichtgeleider | 1 | 63316824295 | Shop at ECS Tuning | ||||||
