Elektro-onderdelen v verwarming for BMW 5 Series E34 540i (1993)

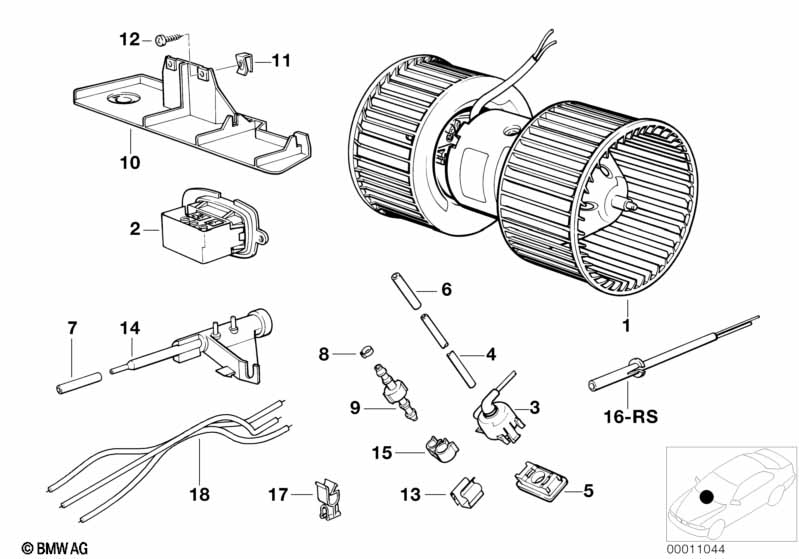

This Elektro-onderdelen v verwarming technical drawing provides a detailed breakdown of the assembly for the 5 Series E34 540i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 1993.
| Nr. | Omschrijving | Toevoeging | Aantal | Van | Tot | Onderdeelnummer | Prijs | Notities | ||
|---|---|---|---|---|---|---|---|---|---|---|
| SLECHTS PASSEND BIJ BEHR | ||||||||||
| 01 | Luchtcompressor | 1 | 64118390935 | $325.17 | Shop at ECS Tuning | |||||
| 02 | Luchtcompressor weerstand | 1 | 64118391699 | $47.03 | Shop at ECS Tuning | |||||
| 03 | Temperatuursensor binnenruim | 2 | 64111384253 | $33.45 | Vervallen | Shop at ECS Tuning | ||||
| 04 | Vakuumslang zwart | 3,5X1,8 | X | 11727545323 | $14.82 | Shop at ECS Tuning | ||||
| 04 | Vakuumslang | 2X4 | X | 64111368684 | $1.77 | Shop at ECS Tuning | ||||
| 05 | Sierafdekking | 2 | 64111384714 | Shop at ECS Tuning | ||||||
| 06 | Smoorsproeier | 1 | 64111384459 | $2.03 | Shop at ECS Tuning | |||||
| 07 | Slang | D=3,5X7MM | 1 | 64121369914 | $13.06 | Shop at ECS Tuning | ||||
| 08 | Slangklem | 4 | 64111373486 | $0.78 | Vervallen | Shop at ECS Tuning | ||||
| 09 | Verbindingsstuk | D=4MM | 1 | 11151276486 | $1.08 | Shop at ECS Tuning | ||||
| 10 | Bevestiging | 1 | 64111384885 | Vervallen | Shop at ECS Tuning | |||||
| 11 | Moer | ST3,5-1-ZNS | 2 | 07129901634 | $0.18 | Shop at ECS Tuning | ||||
| 12 | Blikschroef | ST4,2X19-U2-C-H | 2 | 07119904176 | $0.25 | Shop at ECS Tuning | ||||
| 12 | Blikschroef | ST3,5X13 SW | 2 | 07119904309 | $0.73 | Shop at ECS Tuning | ||||
| 13 | Klem | 1 | 07147202015 | Shop at ECS Tuning | ||||||
| SLECHTS PASSEND BIJ BEHR | ||||||||||
| 14 | Pijp | 1 | 64118390125 | Vervallen | Shop at ECS Tuning | |||||
| SLECHTS PASSEND BIJ SIEMENS | ||||||||||
| 14 | Pijp | 1 | 64111388207 | Shop at ECS Tuning | ||||||
| 15 | Bevestiging | 11,5/8,0MM | 2 | 61131369832 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Reparatie set termo-voeler | 1 | 64111378849 | $46.67 | Shop at ECS Tuning | |||||
| SLECHTS PASSEND BIJ BEHR | ||||||||||
| 18 | Kabelset verwarming | 1 | 64119069758 | Vervallen | Shop at ECS Tuning | |||||
Notities
- Vervallen = het onderdeel is niet meer leverbaar.
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 5 Series E34 540i Elektro-onderdelen v verwarming?
- This technical diagram illustrates the Elektro-onderdelen v verwarming within the Verwarming en air-conditioning group for the 5 Series E34 540i produced during 1993. It provides a detailed exploded view of the components, identifying key parts such as the Luchtcompressor (Part #64118390935).
- Which models use the hardware listed in this Elektro-onderdelen v verwarming?
- The hardware and components featured in the Elektro-onderdelen v verwarming are specific to the 5 Series E34 540i produced during 1993. These technical specifications ensure that parts like the Luchtcompressor (64118390935) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Elektro-onderdelen v verwarming assembly?
- Each item in the Elektro-onderdelen v verwarming corresponds to the numbered list below the illustration. For the 5 Series E34 540i, you can identify the Luchtcompressor by locating its position on the schematic, which then links to the official BMW part number 64118390935 for the Verwarming en air-conditioning section.
